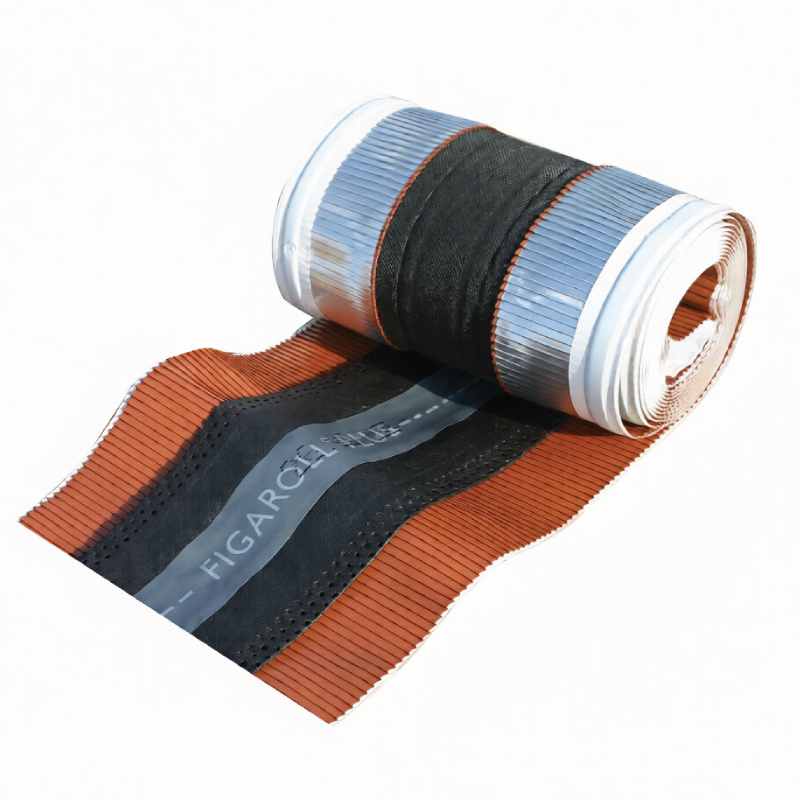

Material for dry installation of ridge FigaRoll plus 5m, 0.32m red BRAMAC

Bramac Dry ridge installation material FigaRoll plus (5 m x 0.32 m) is a high-tech universal roll material from the manufacturer's roofing system, designed for precise ventilation and waterproofing protection when performing horizontal ridges and eaves. The product is developed using innovative production technology and serves to build a secure connection under the covers, applicable to all Bramac tile models and profiles. The middle guide line makes it easier for craftsmen to achieve perfect symmetry and straightness during laying.

The main function of the ventilation strip is to ensure the free removal of moist air from the under-roof space, while blocking the access of external aggressive factors. The model has a patented technique with two ventilation channels, which guarantees maximum protection against the ingress of drifting snow and heavy rain even in hurricane winds. The side aluminum strips have a high stretching capacity of up to 50%, which allows the material to adhere tightly and permanently to the complex relief of highly profiled Mediterranean or classic tiles.

Purpose

• Ventilation and sealing of dry horizontal ridges and inclined ridges (pitches) on multi-pitched roofs
• Removal of residual moisture and condensation from the sub-roof layer outside the building structure
• Waterproofing sealing of the area under the ridge caps against surface water penetration
• Universal system seal for all types of concrete and ceramic roof coverings Bramac

Main advantages

• Maximum security against water and snow penetration through modern two-channel ventilation technology
• Extremely easy shaping along the roof tiles' waves thanks to 50% stretch capacity
• Excellent resistance to aging and damage from solar radiation due to high UV protection
• Quick and clean dry installation without the use of lime mortars thanks to the integrated self-adhesive side strips
• Optimal ventilation cross-section, ensuring durability and protection of the supporting wooden structure from rotting

Technical characteristics

• Type: universal sheet material on a roll for ventilated dry installation under hoods
• Material base: UV stabilized ventilation mesh with self-adhesive aluminum edges
• Item model: FigaRoll Plus
• Length of one roll: 5000 mm (5.0 meters)
• Total tape width: 320 mm (0.32 meters)
• Ventilation cross-section: approximately 150 sq.cm/m on both sides
• Fire classification: class E in reaction to fire
• Fixing method: mechanically to the ridge batten and self-adhesive to the surface of the tiles
• Consumption rate: 1 roll for 5 linear meters of ridge
• Color: red
