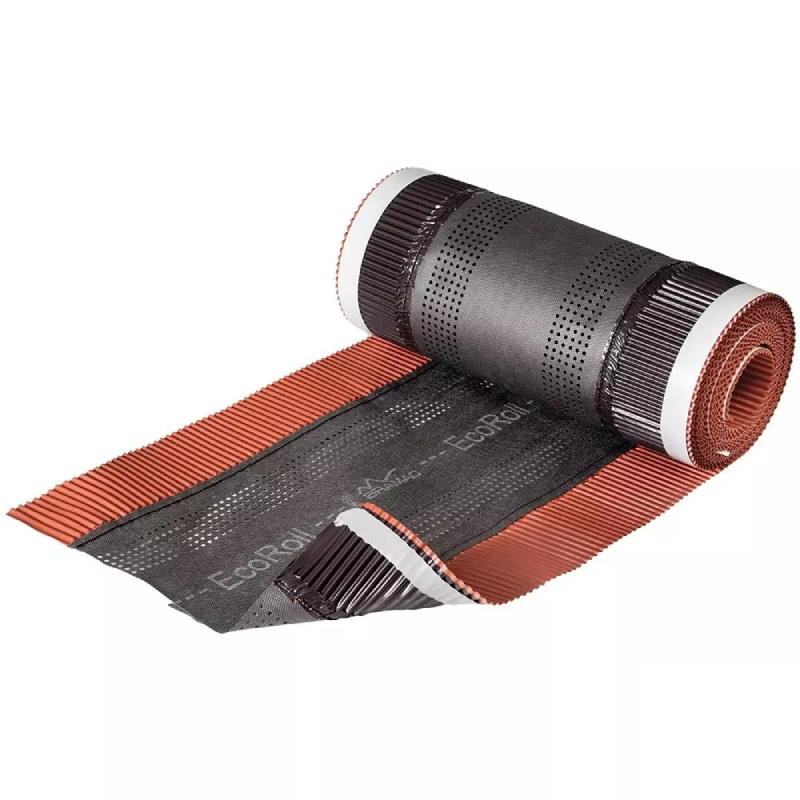

Dry ridge installation material EcoRoll 5m, 0.32m red BRAMAC

Bramac EcoRoll ridge dry installation material (5 m x 0.32 m) is a universal roll material from the manufacturer's roofing system, designed for high-quality ventilation and waterproofing protection when performing horizontal ridges and eaves. The product is an excellent budget solution in the brand's range of dry installation elements, combining reliable sealing under the covers with optimal air exchange. The model is universally applicable to absolutely all Bramac tile models and profiles.

The main function of the ventilation strip is to ensure proper air circulation in the direction from the eaves to the ridge, which is of critical importance for the durability of the supporting wooden structure. The modern design offers a larger usable width compared to competitive products on the market and provides a 30% higher expansion coefficient in the economy segment. This guarantees excellent ventilation of the under-roof space and at the same time complete security against snow drifts and water penetration during heavy rains.

Purpose

• Ventilation and sealing of dry horizontal ridges and inclined ridges (pitches) on multi-pitched roofs
• Removal of residual moisture and condensation from the sub-roof layer outside the building structure
• Waterproofing sealing of the area under the ridge caps against surface water penetration
• Universal system seal for all types of concrete and ceramic roof coverings Bramac

Main advantages

• Optimal balance between affordable price and high quality of Bramac system roofing elements
• With 30% higher elongation coefficient in the end zones for easy molding along the waves of the tiles
• Increased overall profile width compared to alternative products in the budget class
• Fast and clean dry installation without the use of lime mortars thanks to the integrated adhesive layer
• High durability and protection of the supporting wooden structure from rotting due to condensation

Technical characteristics

• Type: universal sheet material on a roll for ventilated dry installation under hoods
• Material base: polypropylene ventilating fabric with self-adhesive aluminum side strips
• Length of one roll: 5000 mm (5.0 meters)
• Total tape width: 320 mm (0.32 meters)
• Side edge stretch: 30% additional expansion capacity
• Fire classification: class E in reaction to fire
• Fixing method: mechanically to the ridge batten and self-adhesive to the surface of the tiles
• Consumption rate: 1 roll for 5 linear meters of ridge
• Color: red
