Description
The VELUX EDS+BDX 2000 PK08 roof cladding is designed for the secure and aesthetic integration of roof windows into tiled and interlocking roofs. The system provides a recessed installation, where the window is lower in the roof structure, which reduces the visible part above the roof line. It combines a high-quality aluminium cladding with installation elements such as the BDX insulation collar and the BFX under-roof collar to ensure excellent waterproofing and weather protection.
Designed with attention to detail, the system provides effective insulation around the window, reduces heat loss and prevents the formation of thermal bridges. It is suitable for tiles with a profile height of up to 90 mm and interlocking slate, offering reliable and long-lasting performance on various roof slopes from 20° to 90° and different climatic conditions.
Purpose
- For installation and sealing of VELUX flush-mounted roof windows
- Suitable for tiled and interlocking roofs
- Reduces the visible part of the window above the roof line
- Compatible with roofs with a slope of 20° to 90°
- Suitable for tiles with a profile up to 90 mm
Main advantages
- Aesthetic and clean integration of the roof window
- BDX insulation collar included to reduce heat loss
- Prevents the formation of thermal bridges
- BFX under-roof collar and cross drain for additional protection
- Made of powder-coated aluminum for resistance to outdoor conditions
- Durable and reliable in various climate conditions
Technical characteristics
- Model: EDS PK08 2000
- Size: 94 x 140 cm
- Material: powder-coated aluminum
- Color: gray
- Suitable tile profile: up to 90 mm
- Suitable roof slope: 20° - 90°
- Compatibility: interlocking slate

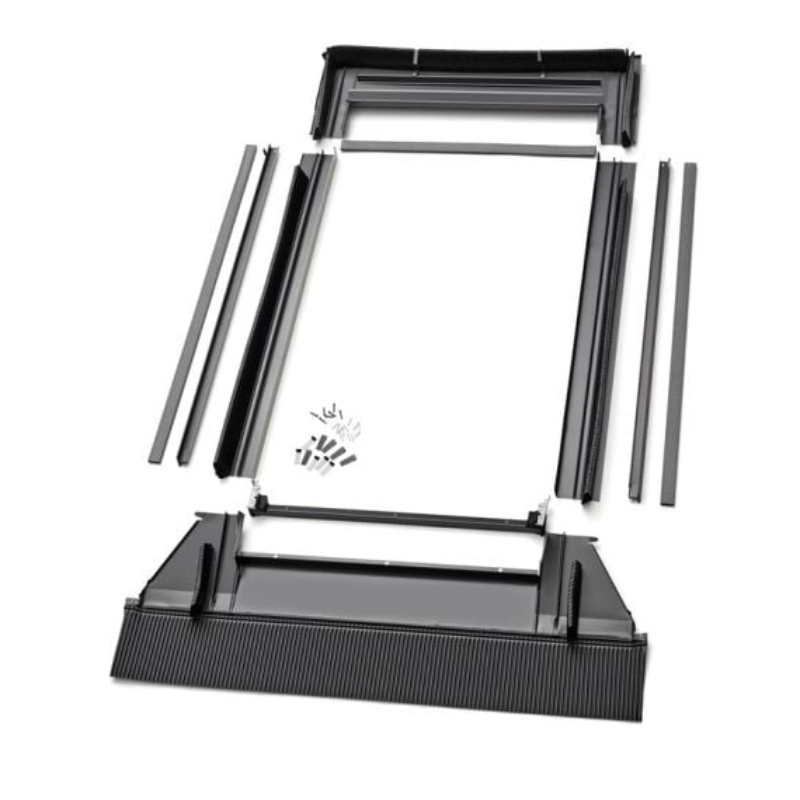

Kit contents
- EDS roofing
- BDX insulation collar
- BFX underlay collar
- Cross drain
- Mounting elements
Specifications
- Brand
- Velux
- Importer
- VELUX BULGARIA LTD
