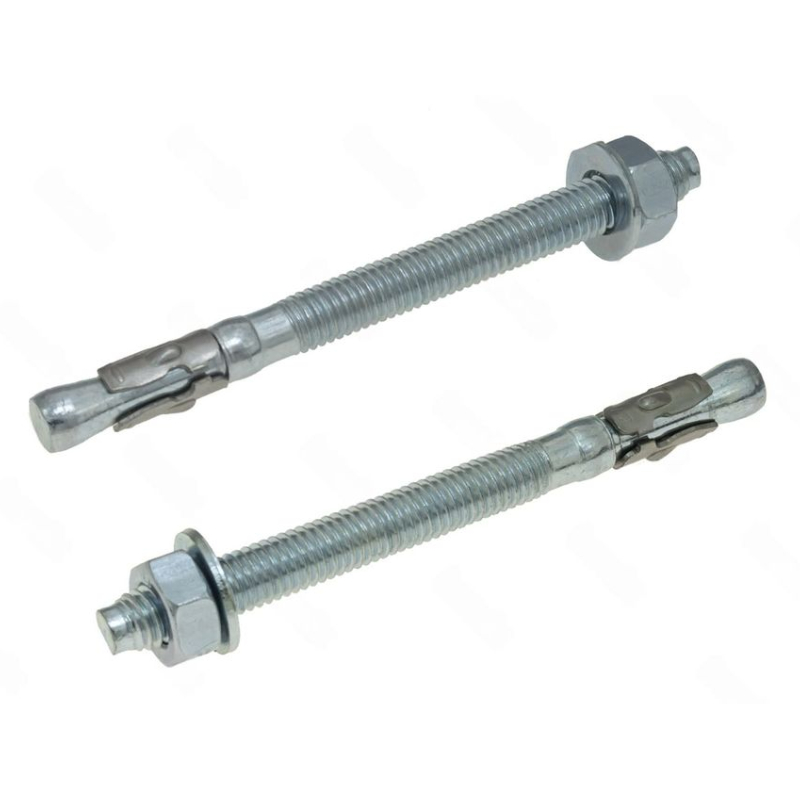

Segmental anchor 10x300mm KAMFIX

The KAMFIX segment anchor is a professional, long-length fastener designed for extra-heavy loads and secure fixation in solid substrates such as concrete and natural stone. This model is ideal for through-hole installations where pre-positioning of the part is required, ensuring uncompromising structural stability. Made of high-quality steel with a galvanised zinc coating, the anchor is protected from corrosion, and the integrated stainless steel expansion clip guarantees long-term reliability of the grip even under harsh operating conditions.

The anchor's operating principle is based on precise mechanics - when the nut is tightened, the conical bolt is pulled upwards, opening the steel clip, which is pressed powerfully against the walls of the drilled hole. Thanks to its impressive length of 300 mm, this anchor allows fastening of extremely thick workpieces or passing through several layers of materials, reaching a solid base for anchoring. The set includes a washer and a nut, ensuring readiness for immediate installation in the construction of metal structures, machines and protective equipment.

Purpose:

• Anchoring heavy metal and wooden structures to concrete surfaces and foundations
• Fixing consoles, support beams and heavy industrial equipment
• Installation of safety fences, railings and barriers requiring high tear resistance
• Fastening facade elements and steel profiles to solid building foundations

Main advantages:

• Exceptional gripping power thanks to the stainless steel expansion clip
• Galvanic zinc coating (Zn) that protects against rust and extends the life of the fastener
• Long working length, allowing installation through thick insulation or bulky parts
• Intuitive and quick installation by tightening, without the need for special tools
• High resistance to vibrations and dynamic loads in solid foundations

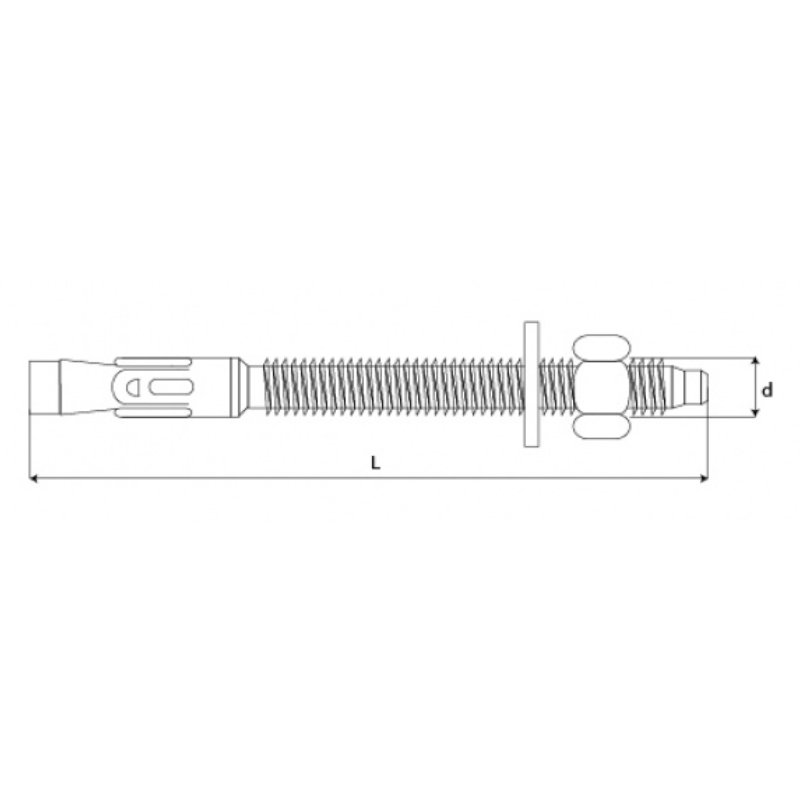

Technical characteristics:

• Type: Wedge Anchor
• Diameter: 10 mm
• Length: 300 mm
• Material: Steel
• Coating: Galvanized (Zn)
• Components: Washer, nut and stainless clip
• Installation type: Through-hole
