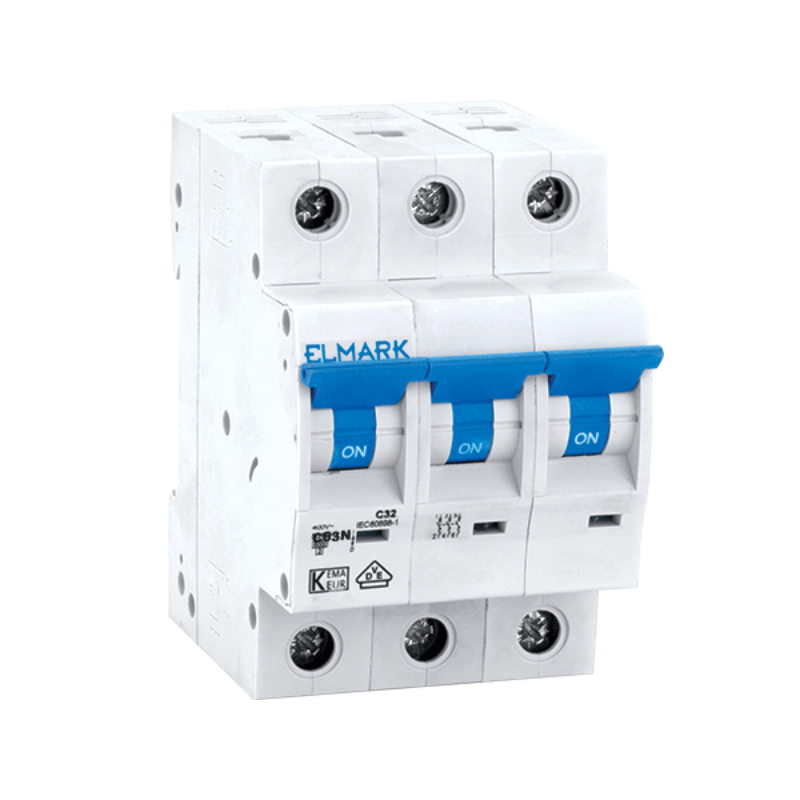

Circuit breaker 3P 20A 6KA, curve C ELMARK

The Elmark 3P 20 A circuit breaker with curve C and breaking capacity of 6 kA provides reliable protection of electrical installations against overload and short circuit. Suitable for industrial applications where high security and stability of the electrical system is required.

Characteristics:

• Brand: Elmark
• Type: Circuit breaker
• Number of poles: 3P
• Rated current: 20 A
• Rated voltage: 400 V AC
• Operating frequency: 50/60 Hz
• Tripping curve: C
• Breaking capacity: 6 kA
• Dimensions: 7.2 × 5.4 × 8.1 cm

Application:

• Protection of electrical circuits from overload and short circuit
• Use as a device for switching and controlling electrical circuits
• Possibility of remote control and indication when combined with auxiliary devices
• Installation in industrial buildings with a high degree of pollution
• Suitable for installations located at a distance of 150-850 m from a transformer station
• Protection of consumers generating short-circuit currents up to 6000 A
