Air hose Ø10mm 20bar blue PLEXISTAB

The PLEXISTAB 340N hose is a high-quality product designed for high-pressure operation. It is suitable for use in compressed air systems, hydraulic installations, pneumatic tools, paint guns and water jetters. Thanks to its strong polyester braid and multi-layer PVC structure, it combines durability, flexibility and safety at work.

Advantages:

• Highly resistant to high pressure - up to 30 bar working and up to 90 bar maximum pressure
• Polyester braid for additional durability and safety
• Flexible and easy to manipulate during work
• Resistant to UV rays and weathering
• Easy to transport and store
• Meets tolerance requirements: internal diameter ±2%, overall tolerance ±5%
• Wide compatibility with pneumatic and hydraulic systems

Technical specifications:

• Size (mm): 10 mm (inner diameter)
• Size (inch): 3/8"
• Pressure (bar): 30 bar (working pressure)
• Maximum pressure (bar): 90 bar
• Hose length (m): 50 meters
• Outer diameter (mm): 16.2 mm
• Working temperature: from -10°C to +60°C
• Compliance with standards: UNI EN ISO 1307:2008
• Weight (g/m): 160 g/m
• Material: Soft PVC with polyester braid
• Color: Transparent blue outer layer, black inner layer

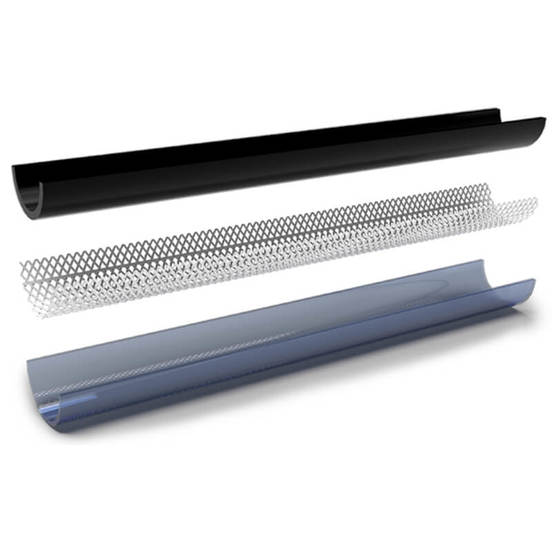

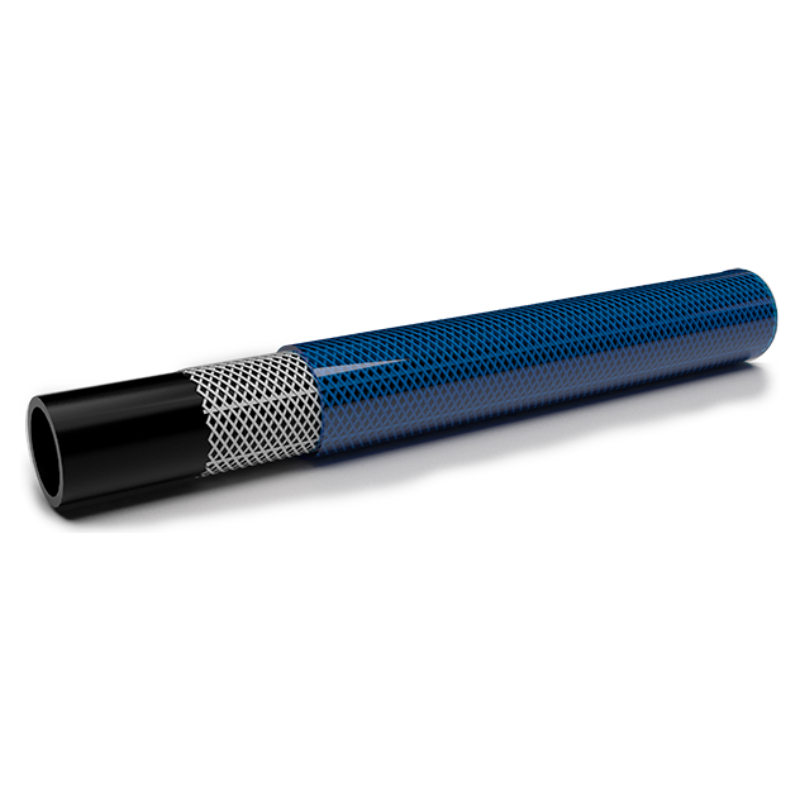

Structure:

• Inner layer: black, soft PVC
• Reinforcement: high-strength polyester braid
• Outer layer: transparent blue, soft PVC

Application:

• Compressed air systems
• Hydraulic systems
• Pneumatic tools
• Spray guns
• Water jetters
