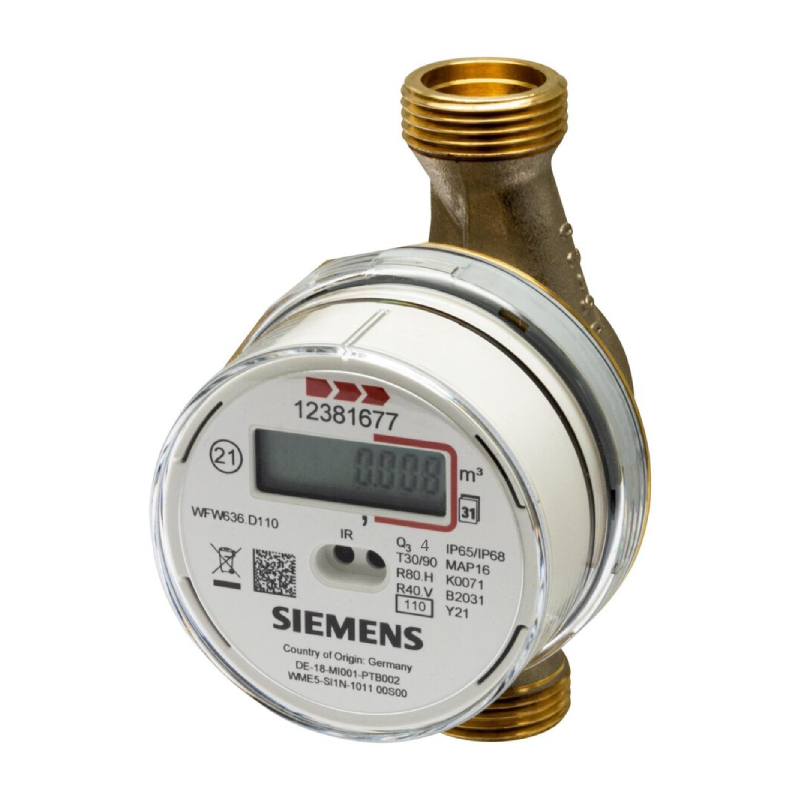

Electronic water meter for hot water 3/4" 4 cubic meters/hour with remote reading AMR/Walk-By SIEMENS

Domestic or home water meter for hot water with LCD display, plastic housing and built-in radio communication module for remote reading. It is factory-equipped with a battery. The water meter is of dry type and serves to measure the amount of water that has passed through it in the household. It is suitable for horizontal and vertical installation. The kit includes mounting gaskets.

Dimensions:

• Length: 130 mm
• Connection size: 3/4"

Activation and inclusion in radio systems

• The radio transmitter of the WF.636 is activated automatically after a flow rate of 50 liters, but without transmitting installation telegrams. Alternatively, the radio transmitter is activated using the WFZ.PS radio telegram activation tool or the ACT50 and WFZ.IrDA-USB parameterization software.

Walk-By (mobile data logging)

• 12 minutes after the radio transmitters are activated, the WF.636 transmits control telegrams so that a control reading can be carried out after all devices have been installed. The WF.636 then transmits regular walk-by telegrams.

AMR (automatic data recording)

• After activating the radio transmitter, the WF.636 transmits installation telegrams for inclusion in the AMR network. The WF.636 then transmits regular data telegrams and statistics telegrams depending on the set radio mode.
