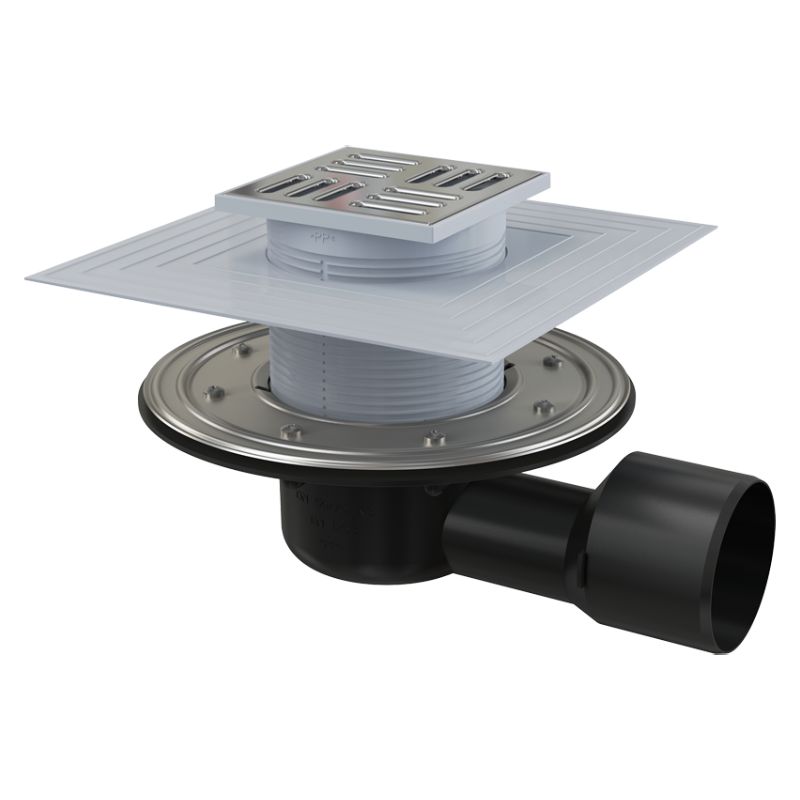

Siphon for bathroom horn ф50/75 mm, Inox lattice 10.5 x 10.5 cm, stainless flange APV3344

Horn siphon for bathroom APV3344 by ALCAPLAST with side outlet for water drainage. The floor siphon is suitable for indoor installation (in bathrooms and other toilets), as well as for outdoor spaces where there may be a drop in temperature below zero.
The floor siphon is equipped with a combined protection against unpleasant odors - water and dry shutter. The combined protection does not allow the return of unpleasant odors from the sewer, even when the water dries in the water seal.

It is equipped with:

• Stainless steel grille with stainless steel coating and dimensions 105 × 105 × 5 mm
• Wide insulating collar for connection to a waterproofing structure
• Collar-2nd level of insulation for connection to the waterproofing layer under the pavement
• Stainless steel flange for firm fastening of waterproofing membrane or construction waterproofing material
• Lateral connection to sewerage Ф75 / 50 mm

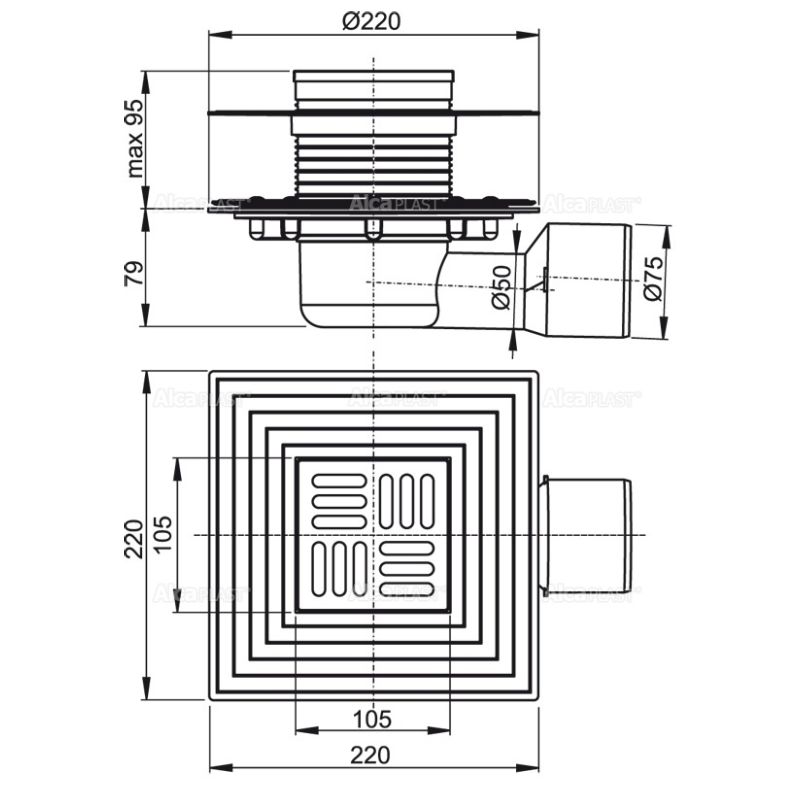

Allows adjustment of the mounting height from 25 to 95 mm, and the total mounting height can be from 104 to 174 mm.
The floor horn siphon for a bathroom guarantees a big flow - to 62 l/min. It is compatible with sewer pipes with a diameter of 75/50 mm.
