Vertical boiler 50l 1.6kW, GCV 50/38/16D D06 TS2R

High volume water heater for vertical installation TESY Anticalc Slim GCV 50 38 16D D06 TS2R. The boiler has a power of 1.6 kW and a capacity of 50 liters. Its dimensions are: height - 81.8 cm; diameter - ф38.6 cm. It belongs to energy class C.

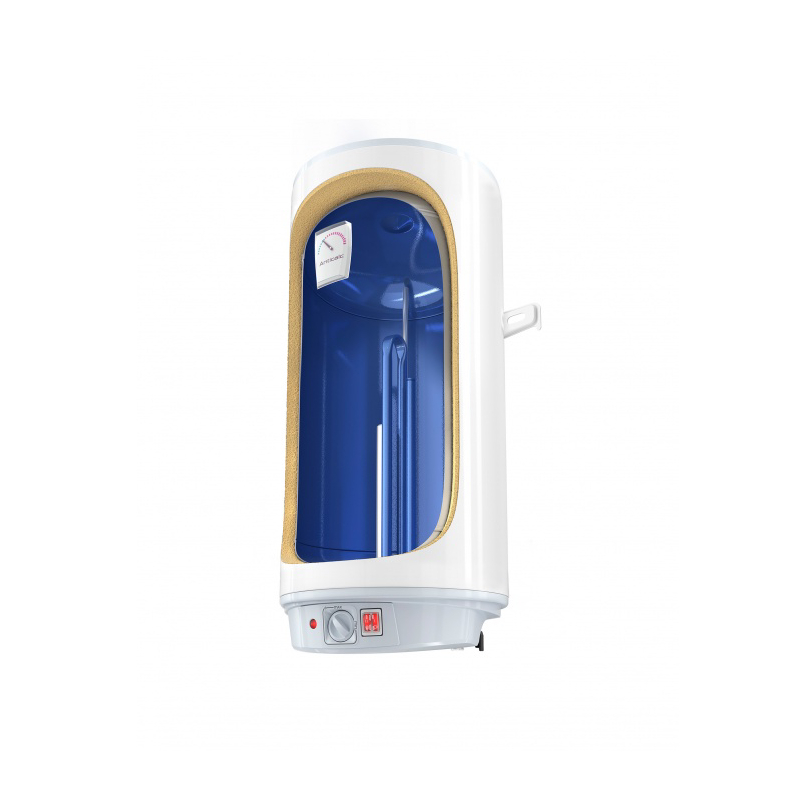

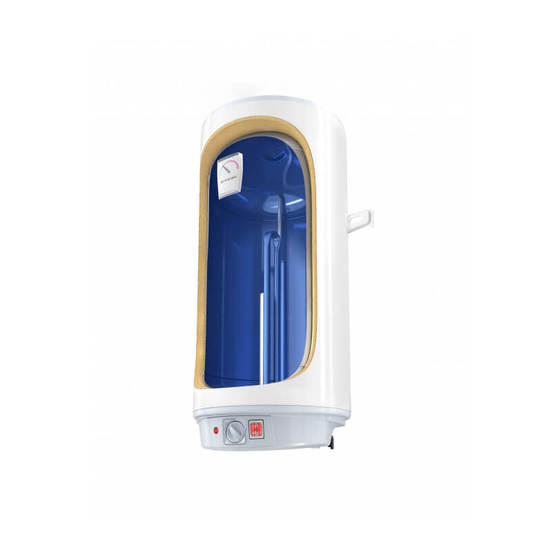

The water heater has a flange at the bottom, a protective plastic panel and a non-return valve. The housing of the model GCV 50 38 16D D06 TS2R consists of a steel tank containing water and a casing, which is an outer shell. Between them is thermal insulation made of environmentally friendly high-density polyurethane foam and two G-threaded pipes. One is for supplying cold water marked with a blue ring and the other for discharging hot water marked with a red ring.
The TESY boiler guarantees high energy efficiency thanks to INSUTECH technology, which ensures even distribution of high-density polyurethane insulation. As a result, hot water is stored protected from cooling for a long time until its use.
TESY Anticalc Slim water heaters are equipped with an ECO position of the external regulator, ensuring economical and long-term operation. Due to its unique design, the regulator reduces the rapid mixing of water in the boiler. The incoming cold water stays at the bottom of the water tank and gently pushes the hot water up, creating the so-called PISTON effect, providing up to 15% more hot water.
The boiler offers two operating modes. It is equipped with a thermostat with thermal and electrical protection, as well as an anti-freeze device.
The vertical water heater also has a convenient to use external thermostat with smooth temperature adjustment, as well as a moisture-insulated switch with a light indicator for on/off.
Specifications:
- Anticalc anti-scale function
- Pressure: 0.8 Mpa
- Heating time from 15°C to 60°C: 1h 37min/3h 15min
- Energy class: C
- Annual consumption: 1388kWh
