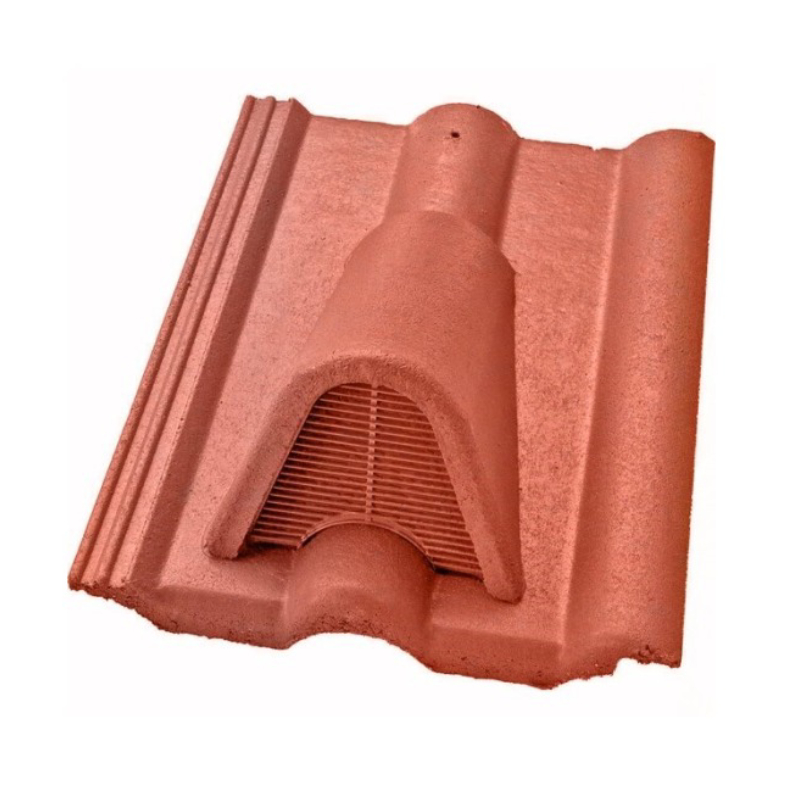

Economy red ventilated tile BRAMAC

Bramac Economy Red Ventilated Tile is a high-quality specialized concrete roofing element from the manufacturer's original system range. The product is integrated directly into the roof area in the ridge area, usually installed on the last row of tiles. This detail replaces a standard tile and matches perfectly in color, shape and geometry with the other elements of the Economy series (BRAMAC Economy), ensuring a homogeneous appearance and impeccable visual finish of the pitched roof.

The main function of the ventilated cement tile is to ensure proper and highly efficient ventilation of the under-roof space to maintain the so-called "functionally cold roof". Through its precisely designed opening with a cross-section of 50 sq.cm, it maintains a constant air flow, which removes the moisture evaporated from the building and prevents condensation. In this way, the wooden roof structure and thermal insulation are protected from rot and mold. The factory-installed ventilation grille reliably prevents the entry of insects, birds and precipitation under the coating.

Purpose

• Precise ventilation of the under-roof space in the areas around the main ridge of the roof
• Permanent removal of residual moisture and condensation outside the building's supporting structure
• Effective protection of the wooden grill and thermal insulation from moisture and loss of properties
• Universal system design of ventilation openings on the slope in the Economy series

Main advantages

• Complete prevention of condensation processes under the tiles through a large ventilation cross-section
• Extending the life of the roof structure by eliminating the risks of mold and rot
• Maximum resistance to frost, mechanical stress and UV rays thanks to concrete
• Factory-drilled ⌀4 mm nail holes for quick, easy and stable installation to the battens
• Homogeneous integration into the roof plane with full color and geometric compliance

Technical characteristics

• Type: specialized ventilated concrete tile for pitched roofs
• Material base: high-quality dense, high-strength colored concrete
• Overall dimensions: 330 mm total width x 420 mm total length
• Covering width of the element: 300 mm (30 cm)
• Roof length: 400 mm (40 cm)
• Ventilation hole cross-section: 50 sq.cm per piece
• Mechanical fastening holes: factory-made holes with a diameter of ⌀4 mm
• Minimum consumption rate: 1 piece per 10 sq.m (minimum 10 pieces per 100 sq.m of roof area)
• Classification: original ventilation accessory from the Bramac Economy system
• Weight of one piece: 5.90 kg
• Color: red
