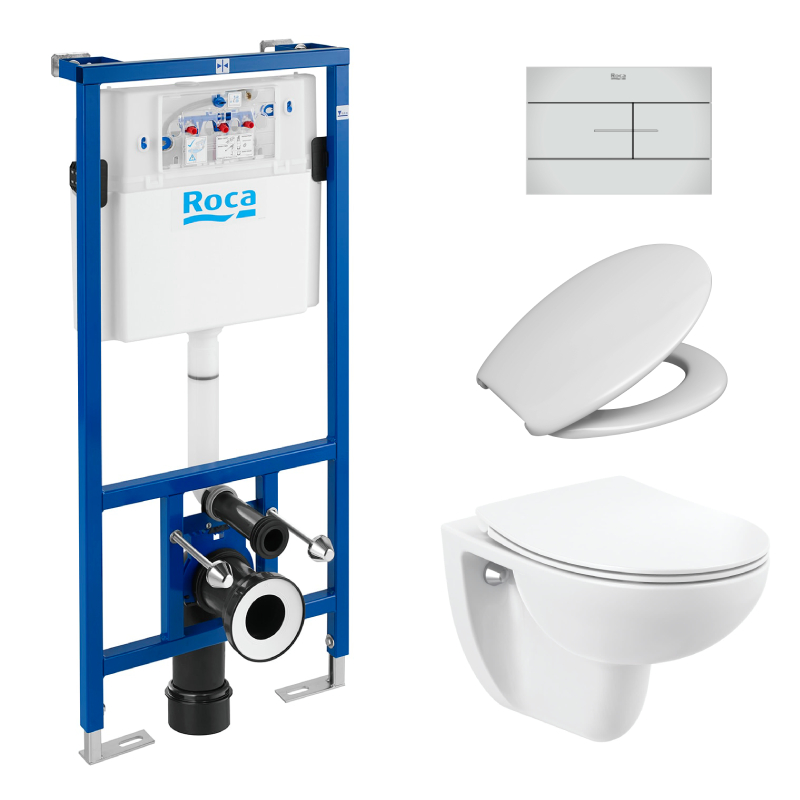

Victoria NEW Rimless built-in structure with toilet bowl, seat and button

Create a stylish, functional and contemporary bathroom with the complete installation kit Victoria NEW Rimless - a smart solution that combines aesthetics, innovation and reliability. This kit includes everything you need for a complete installation: a built-in structure, a wall-hung toilet without a ring (rimless technology), a seat with a slow-fall mechanism and a dual flush button. Suitable for both new construction and renovation of an existing bathroom, the kit provides a stable structure, easy maintenance and economical use of water.

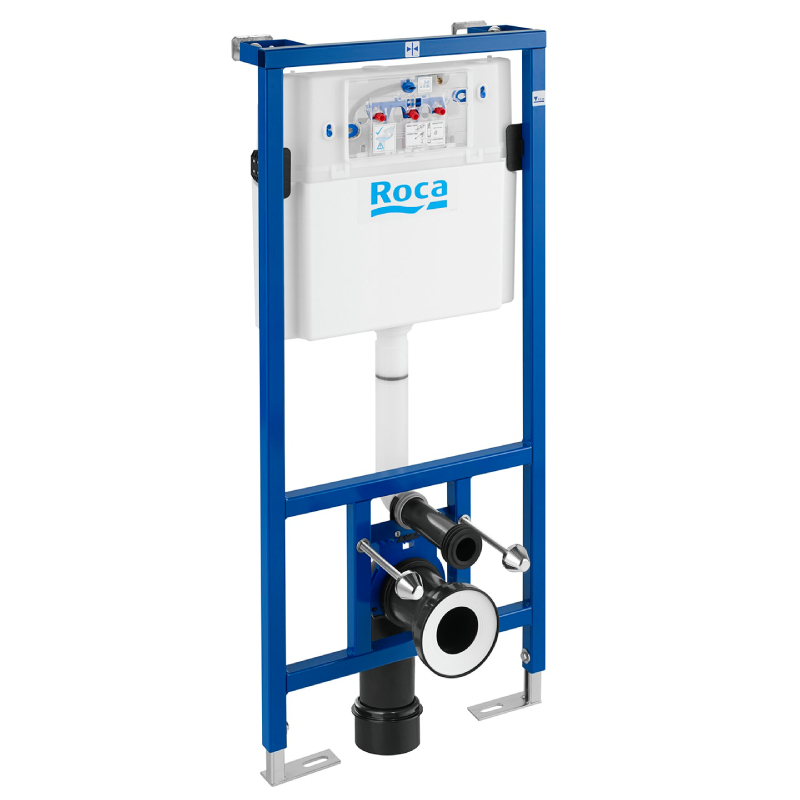

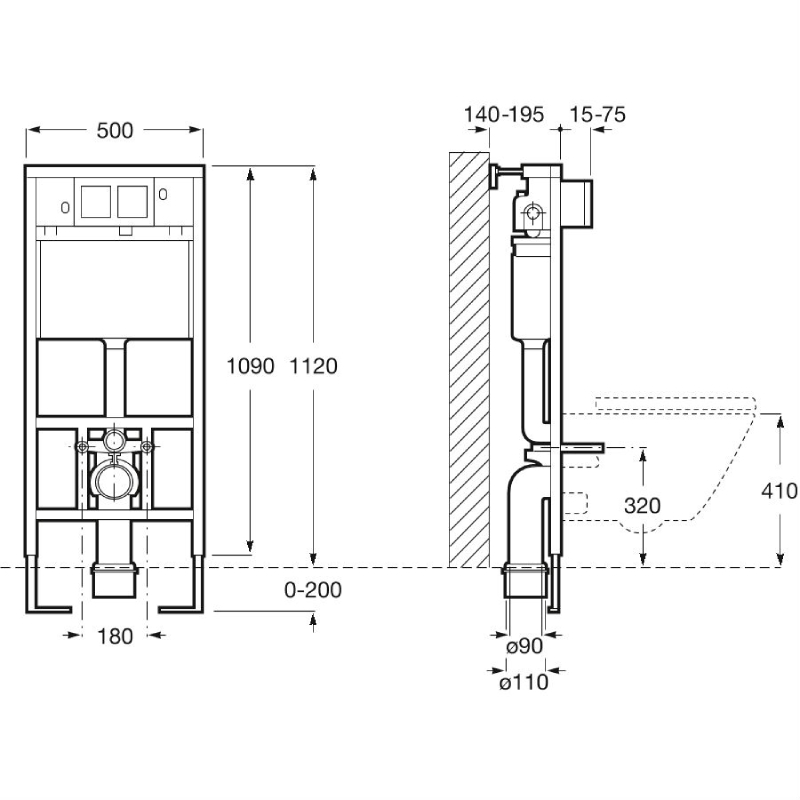

Characteristics of the ROCA A890090020 built-in structure

• Intended for installation on the floor/wall or partition wall (drywall)
• Powder-coated metal structure with a maximum load capacity of 400 kg
• Height adjustment using feet with a mechanism up to 200 mm
• Adjustment of the distance from a solid wall using a set of installation accessories
• ABS (acrylonitrile-butadiene-styrene) cistern with a maximum capacity of 9 l
• Anti-condensation protection
• Factory-set flush volume 6/3 l with additional adjustment option
• PE (polyethylene) drain elbow 90/110 with support bracket
• Shut-off valve with soft connection 1/2" for top supply of the cistern
• With installation accessories included

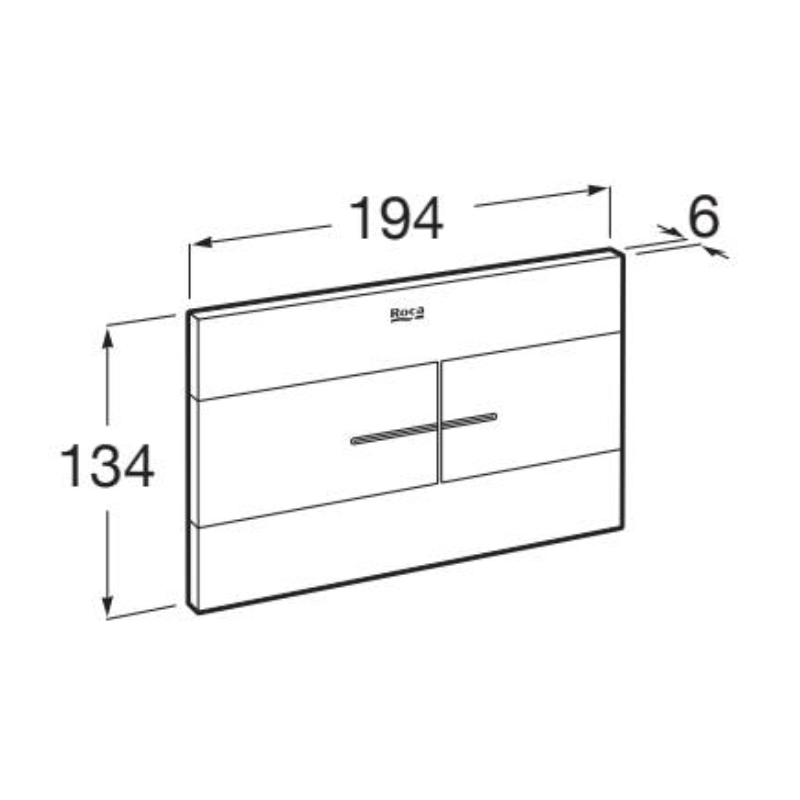

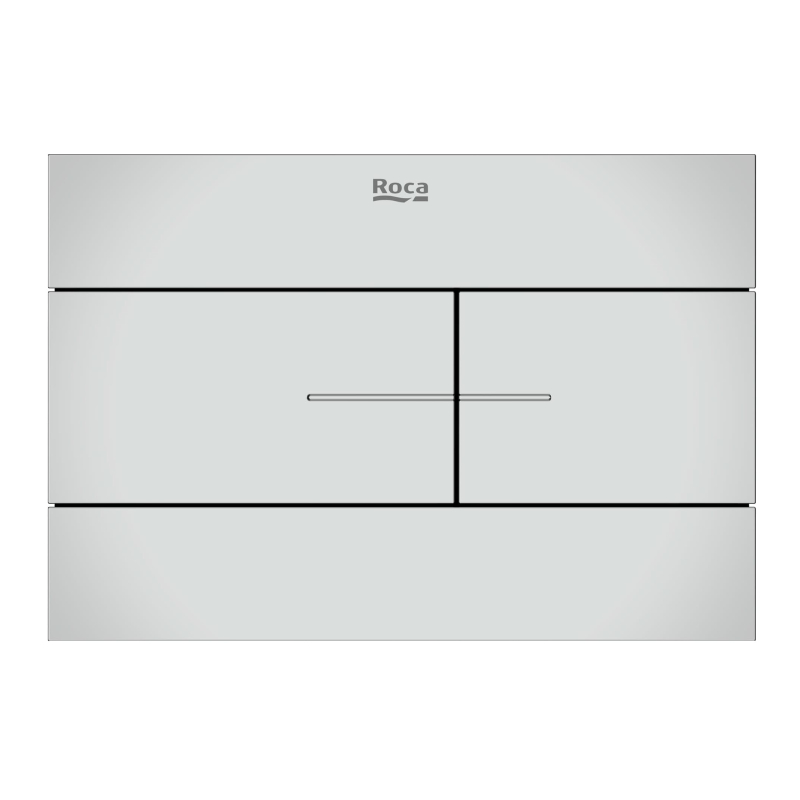

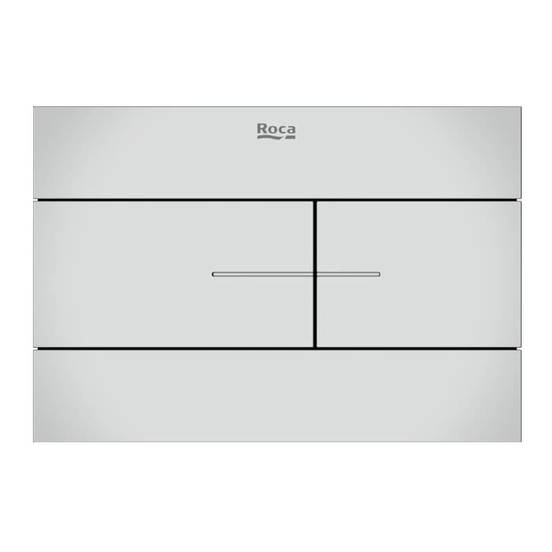

Features of the button for the built-in structure ROCA A890224301

• Double button for water discharge - 3/6 liters
• Dimensions: 134 x 194 cm
• Thickness: 6 mm
• Color: chrome

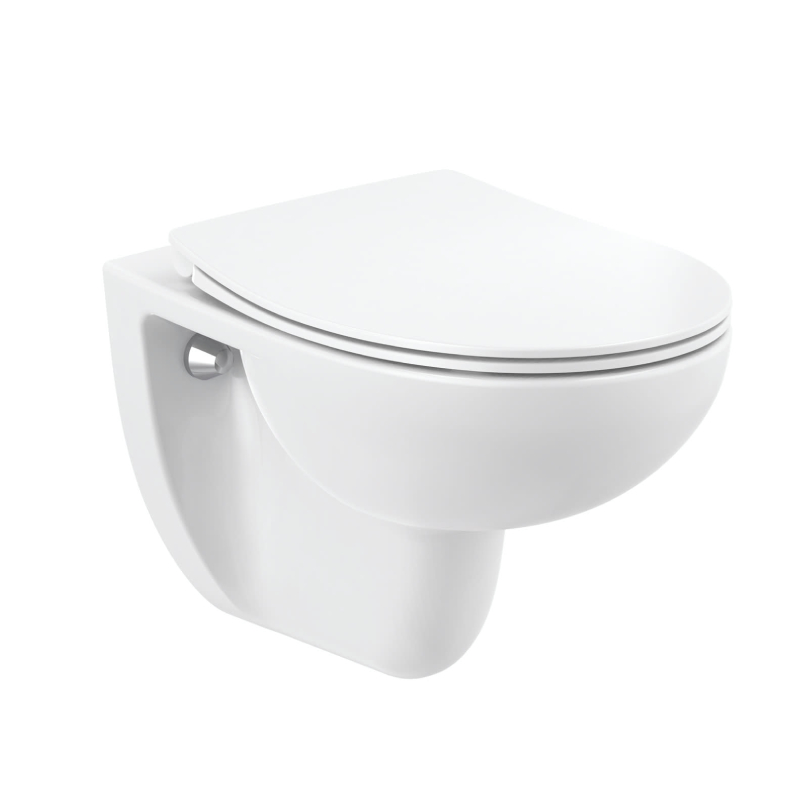

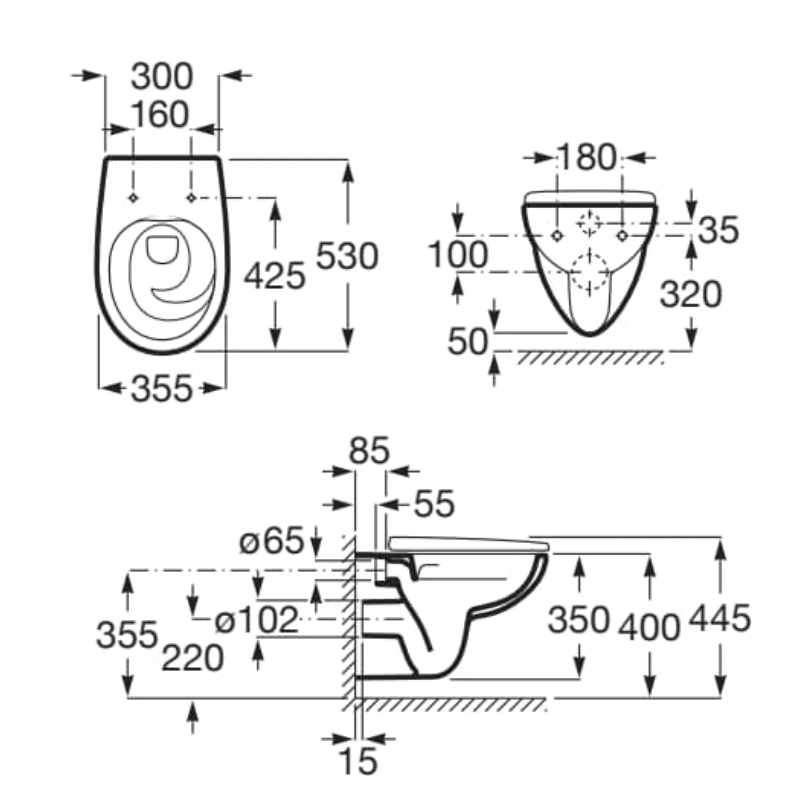

Features of the ROCA A346V03000 wall-hung toilet

• Rimless toilet bowl for easier cleaning and excellent hygiene
• Drain type: Horizontal
• Mounting type: For wall mounting

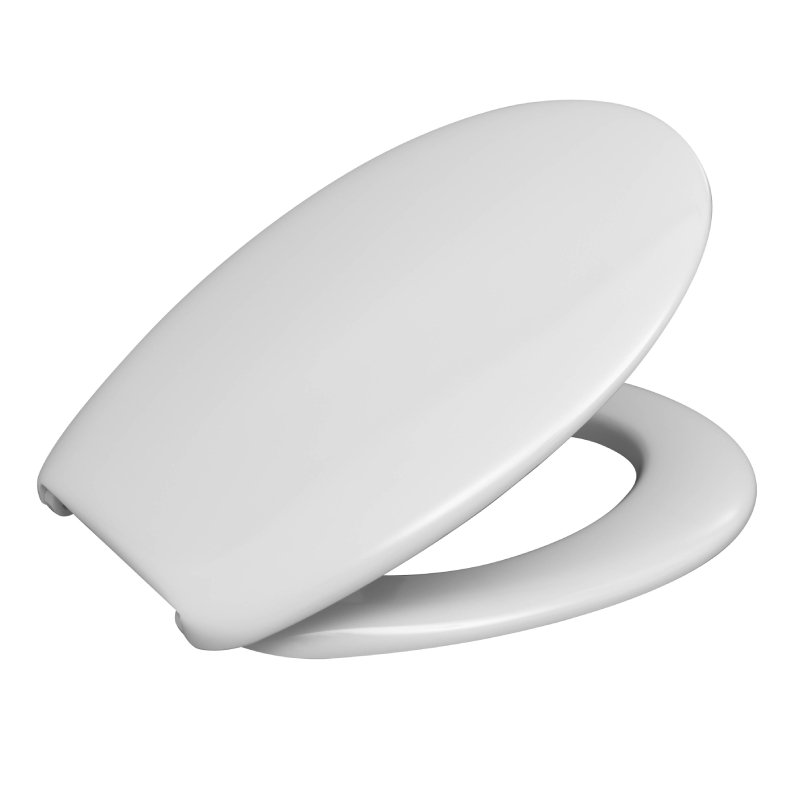

Features of the ROCA toilet seat A801392001

• Soft closing mechanism
• Slim design
• Width: 35.5 cm
• EasyClean technology
• Material: 100% waterproof and shockproof
• White color
