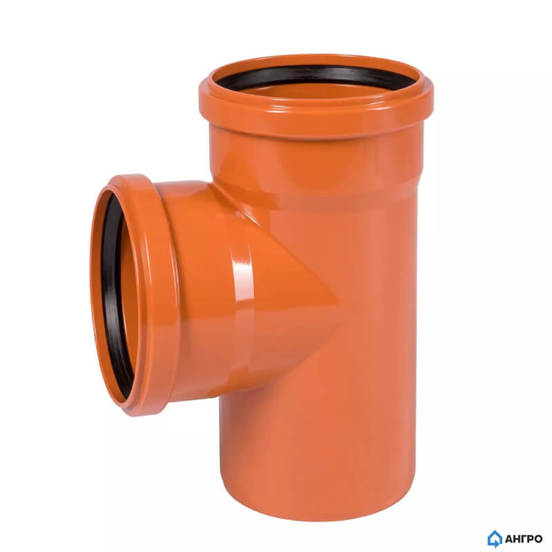

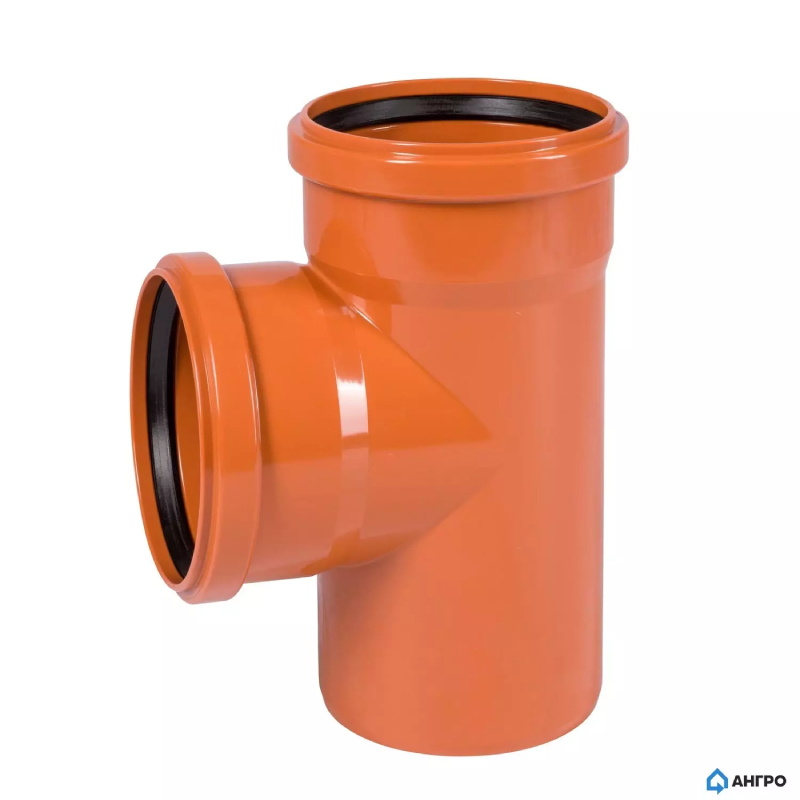

PVC splitter Ø200/110x87° PL PIPELIFE

The professional orange PVC branch of the world leader PIPELIFE with main diameters ⌀200/110 mm and a deflection angle of 87 degrees is a high-tech connecting fitting from the specialized PVC KG® series. This element is designed for the construction of safe and long-lasting deviations in external underground non-pressure sewer networks. The product allows the precise connection of an additional pipe line with an external diameter of 110 mm to a main sewer collector with a diameter of 200 mm. The angle of 87° provides an almost perpendicular discharge, which is ideal for vertical connections, inspection shafts and specific technological branches, saving space during excavation work.

The key engineering advantage of PIPELIFE’s PVC KG® fittings is the innovative three-layer material structure. The inner and outer layers are made of dense, high-strength unplasticized polyvinyl chloride (PVC-U), and the intermediate layer is composed of a special foamed polyvinyl chloride. This specific configuration gives the coupler exceptional peripheral elasticity of the ring, high resistance to serious dynamic and static loads from soil settlement and traffic, while keeping the fitting lightweight (only 0.55 kg). The model features factory-muffed ends with built-in elastomeric rubber rings, which guarantee complete water tightness under pressure, quick installation by fitting without adhesives and absolute resistance to chemical corrosion from domestic wastewater and aggressive subsoil environments.

Purpose:

• For the construction of reliable 87° bends in external underground sewer systems
• For connecting building and site drainage lines (⌀110 mm) to main street collectors (⌀200 mm)
• For implementation in rainwater, industrial and domestic wastewater systems
• For installation in areas with increased static or dynamic soil load under parking lots and driveways

Main advantages:

• Extremely long service life thanks to the three-layer structure that prevents deformation
• One hundred percent tightness of the connections through factory-installed, aging-resistant rubber seals
• High performance and easy installation on site without the need to use welding machines or adhesives
• Complete immunity against corrosion, rot and chemical agents contained in sewage
• Standard orange color for quick visual identification of the pipeline during subsequent excavation work

Technical characteristics:

• Product type: Sewerage connector (Tee)
• Main diameter (DN/OD): ⌀200 mm
• Deviation diameter: ⌀110 mm
• Branch angle: 87°
• Connection type: Socketed (with built-in rubber O-rings)
• Net weight: 0.55 kg
• Transport dimensions of the package: 40 x 35 x 30 cm
• Color: Orange
