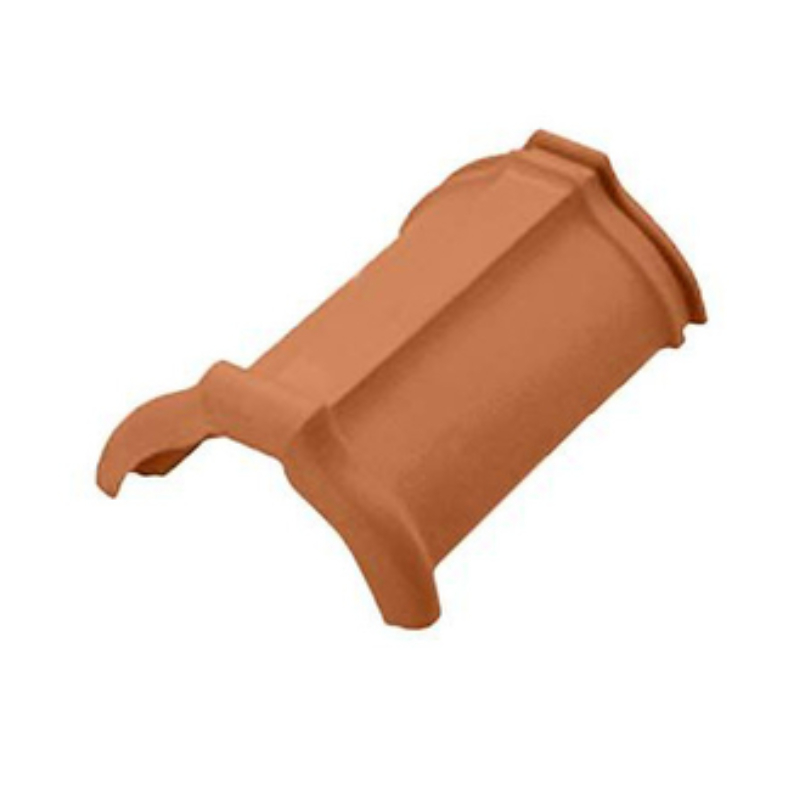

Recessed lid Continental 12/Veneton 13 terracotta TONDACH

The Continental 12 / Veneton 13 terracotta rebated roof cap TONDACH is designed for dry installation on the ridge of pitched roofs, providing reliable and tight coverage of the ridge line. Thanks to its design, it allows for proper drainage of rainwater and at the same time assists in the ventilation of the under-roof space.

Made from 100% natural baked clay, the cover combines high resistance and long service life. Its system design allows compatibility with both Continental 12 and Veneton 13, ensuring stability under different roof profiles and loads.

Purpose

• Ridge shaping for dry-mounted pitched roofs
• Covering and protecting the joint between the two roof panels
• Providing ventilation in the ridge area
• Use in TONDACH Continental 12 and Veneton 13 systems
• Installation on ridge batten with dry mortar-free system

Main advantages

• Locking rebate system for secure overlap
• Prevents rainwater from penetrating under the roof
• Universal application for different tile profiles
• Increased resistance to strong winds
• Stable mechanical fixing with clamps to the ridge batten
• Compatible with modern dry installation systems
• Supports ventilation of the roof structure
• Long service life and high durability

Technical characteristics

• Material: 100% natural baked clay (ceramic)
• Color / finish: terracotta / natural
• Total length: 41.0 cm
• Cover length: 36.0 cm
• Width of the clear opening: 17.0 cm
• Weight: about 3.30 kg
• Consumption rate: about 2.8 pcs./l.m. of the ridge
