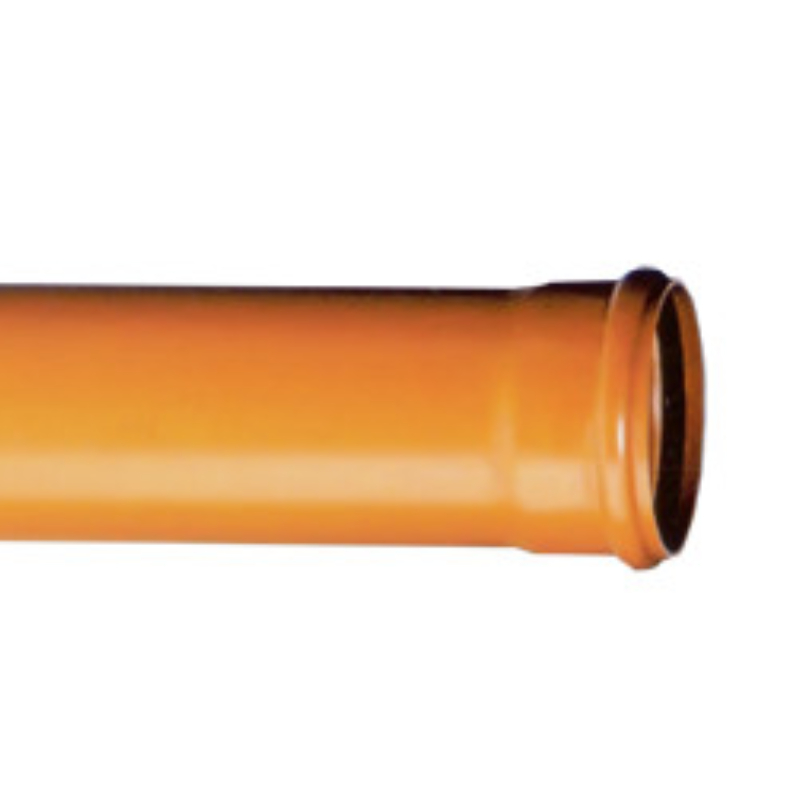

PVC pipe Ø200/3.9mm 5m SN2 orange muffled PIPELIFE

The professional orange PVC pipe with an outer diameter of ⌀200 mm and a total length of 5 meters is a reliable and highly efficient solution for the construction of external underground non-pressure sewage systems and drainage networks. Manufactured according to modern technological standards in the Pipe Industrial factories (and distributed by Pipelife), this model fully meets the strict requirements of the BDS EN 13476-1, 2, 4 and BDS EN 1453-1 standards. The pipe is distinguished by an optimized peripheral stiffness class SN2, which makes it ideally applicable for installation in shallow underground excavations and areas located outside the reach of heavy road traffic, such as green areas, private yards, gardens and pedestrian walkways.

The pipe structure is designed with a wall thickness of 3.9 mm and has a factory-integrated socketed end. The socket contains a precise groove with an embedded high-quality elastomeric rubber seal, which guarantees 100% watertightness of the connection under pressure, elastically tolerates natural settlements of soil masses and resists penetration of roots from surrounding vegetation. The completely smooth inner walls of the product ensure perfect hydraulic properties of the flowing flow, prevent the appearance of limescale deposits, grease retention and subsequent blockages, while guaranteeing easy and express mechanical installation on the site without the need for adhesives.

Purpose:

• For the construction of external gravity sewer networks for domestic and industrial wastewater
• For installation in surface drainage systems, rainwater collection and drainage collectors
• For laying in underground excavations with low levels of surface load (yards, gardens and sidewalks)
• For making building, site and local drainage diversions in residential construction

Main advantages:

• Guaranteed high quality and structural safety through full coverage of BDS EN standards
• Extremely long service life underground due to PVC's complete insensitivity to corrosion and rust
• Impeccable hydraulic efficiency without the risk of debris and sediment retention in the smooth internal channel
• Fast, easy and economical on-site installation through direct coupling without the cost of specialized adhesives
• Excellent resistance to chemically aggressive fluids, detergents and acidic subsurface environments

Technical characteristics:

• Product type: External sewer pipe
• Compliance with standards: BDS EN 13476-1:2008, 13476-2:2008, 13476-4:2008 / BDS EN 1453-1:2000
• Material: Unplasticized polyvinyl chloride (PVC)
• Outer diameter (F): ⌀200 mm
• Wall thickness: 3.9 mm
• Length of one section: 5 meters
• Peripheral stiffness class: SN2 (For low loads)
• Connection type: Socketed (with built-in factory rubber O-ring)
• Color: Orange
