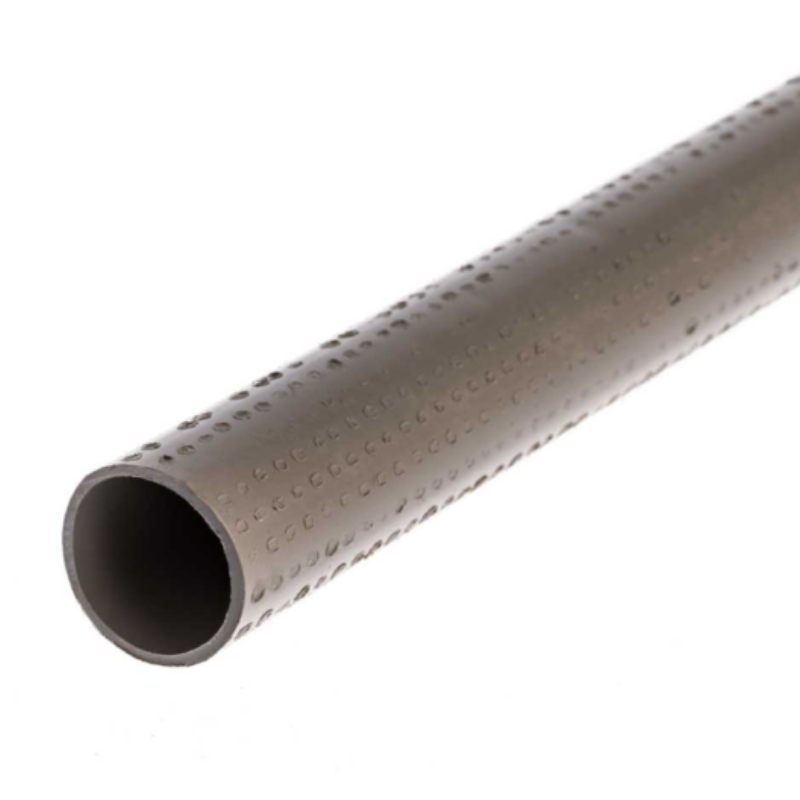

PVC pipe for stud Ø22mm, 2m VESTAL

The specialized formwork PVC pipe of the established manufacturer VESTAL with an internal diameter of 22 mm is an indispensable and high-performance consumable designed for the needs of modern monolithic construction. The main engineering function of this item is to serve as a protective sleeve for the steel formwork studs during the pouring and hardening of the concrete mixture. By preventing direct contact between the liquid concrete and the metal fasteners, the pipe ensures that after demoulding the studs can be removed quickly, easily and completely undamaged, which allows their repeated subsequent use on the construction site and drastically reduces material costs.

In addition to its protective role, the PVC pipe also performs a critically important structural function as a rigid internal limiter (spacer) between the formwork panels. It ensures perfect fixation of the system under the pressure of the fasteners and guarantees absolute accuracy and uniformity in the thickness of the concrete walls, earthenware washers and columns being constructed. Made from specially modified and dense polyvinyl chloride, this model has excellent mechanical strength and resistance to deformation under the weight of the concrete, while being extremely light (only 350 grams per two-meter profile), which facilitates cutting to size, transportation and installation on site.

Purpose:

• For protecting formwork studs from sealing in concrete when constructing vertical reinforced concrete structures
• For precise spacing and ensuring the design thickness of walls, columns and foundations
• For working with different types of formwork systems - wooden, metal and plastic panels
• For the construction of technological openings in concrete bodies for the subsequent passage of installations and cables

Main advantages:

• High cost-effectiveness of the site by protecting the studs for repeated use without damage
• Impeccable accuracy of the construction process thanks to the rigid PVC profile that withstands the high hydraulic pressure of the concrete
• Quick and easy on-site processing using standard cutting tools to the specific dimensions of the formwork
• Complete chemical neutrality and resistance to aggressive building mixtures, moisture and temperature amplitudes

Technical characteristics:

• Brand/Manufacturer: VESTAL
• Product type: Formwork pipe (Spacer)
• Material: Polyvinyl Chloride (PVC)
• Inner diameter (F): 22 mm
• Outer diameter: 25 mm
• Length of one tube: 2 meters
• Weight per piece: 0.350 kg
