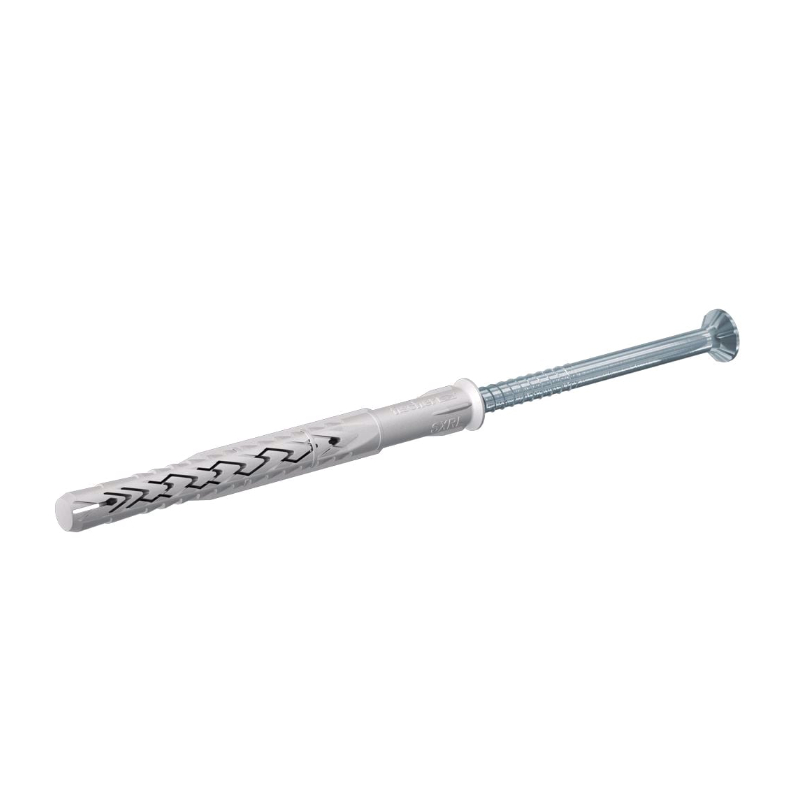

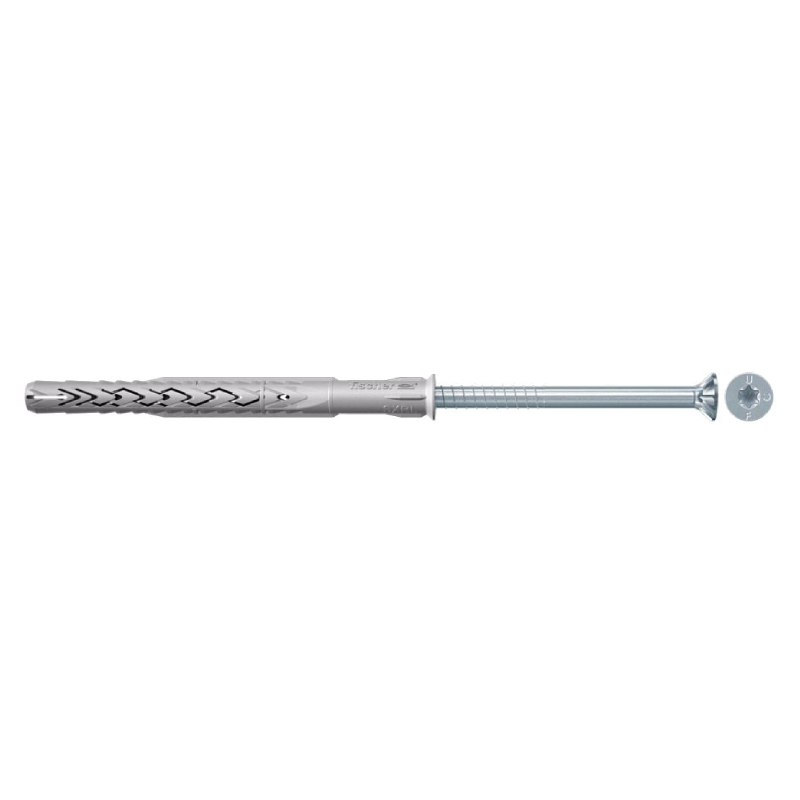

Universal dowel with screw TH Ø8x160mm SXRL T FISCHER

The high-performance SXRL T anchor from world leader FISCHER is a professional fastening solution designed to provide exceptional load values in almost all types of building materials. The set includes a specially designed screw with a countersunk (concealed) head, which allows for a completely smooth and aesthetic finish on the surface of the fastened part. The anchor features an elongated body and innovative geometry that ensures even force distribution, making it a reliable choice for critical installations where security is paramount.

The unique advantage of the SXRL model is its two separate expansion zones, which intelligently adapt to the structure of the base - whether solid concrete or perforated bricks with cavities. This technology results in optimal load-bearing capacity and prevents the dowel from rolling in the hole during installation. With its length of 160 mm, this dowel is ideal for fastening bulky and heavy elements, while ensuring deep and stable anchoring even through insulation layers or thick plaster.

Purpose:

• Installation of responsible ceiling and roof structures made of wood or metal
• Fixing kitchen cabinets, heavy wardrobes, railings and radiators
• Fixing metal brackets, brackets, gates and doors to facade and interior walls
• Installation in a wide range of substrates: concrete, natural stone, aerated concrete, hollow and solid bricks, gypsum panels

Main advantages:

• Dual expansion zone for maximum adhesion in both dense and porous building materials
• Countersunk head screw with TX30 drive, ensuring perfect force transmission and aesthetic installation
• Special stoppers on the body that prevent unwanted rotation of the dowel when screwing
• Certified quality from FISCHER, guaranteeing high levels of safety and durability
• Long service life even when fastening elements under constant stress

Technical characteristics:

• Model: SXRL 8 x 160 T
• Head type: Milling cutter (hidden)
• Drilling diameter: 8 mm
• Dowel length: 160 mm
• Drive: TORX (TX30)
• Material: High quality nylon / Galvanized steel
• Shipping weight: 0.038 kg
