Cable PVA2 1.0 H05V-K CABLE COMMERCE

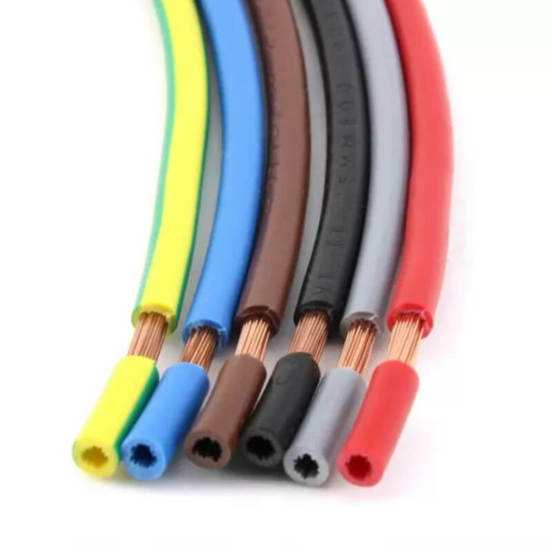

The PVA2 H05V-K cable is intended for laying in electrical installations with requirements for flexibility, suitable for installation in panels, machines, apparatus and instruments. The insulation is made of PVC, which ensures mechanical and thermal resistance and safe operation in standard and mobile installations.

The flexible copper stranded wire of class 5 allows easy bending and reliable connection in various applications. The cable is certified according to standard VDE 0281-3 and is flame resistant according to IEC 332-1. It is suitable for voltages up to 300/500 V and operation in a temperature range from -5°C to +50°C for mobile installation and from -30°C to +50°C for fixed installation.

Purpose:

• For installation in installations, panels, machines, apparatus and instruments
• Suitable for mobile and stationary installations
• Used in installations with wire flexibility requirements

Main advantages:

• Flexible copper wire class 5 for easy bending
• PVC insulation, resistant to mechanical and thermal stress
• Fire resistant according to IEC 332-1
• Safe at standard voltages 300/500 V
• Certified according to VDE 0281-3

Technical characteristics:

• Type: PVA2 / H05V-K
• Number of cores: 1 stranded
• Cross section: 1.0 sq.mm
• Wire material: copper
• Insulation: PVC
• Rated voltage: 300/500 V
• Temperature range: movable -5°C to +50°C, stationary -30°C to +50°C
• Color: assorted (random color sent)
• The advertised price is per linear meter.
