Cable PVA1 1.00 H05V-U CABLE COMMERCE

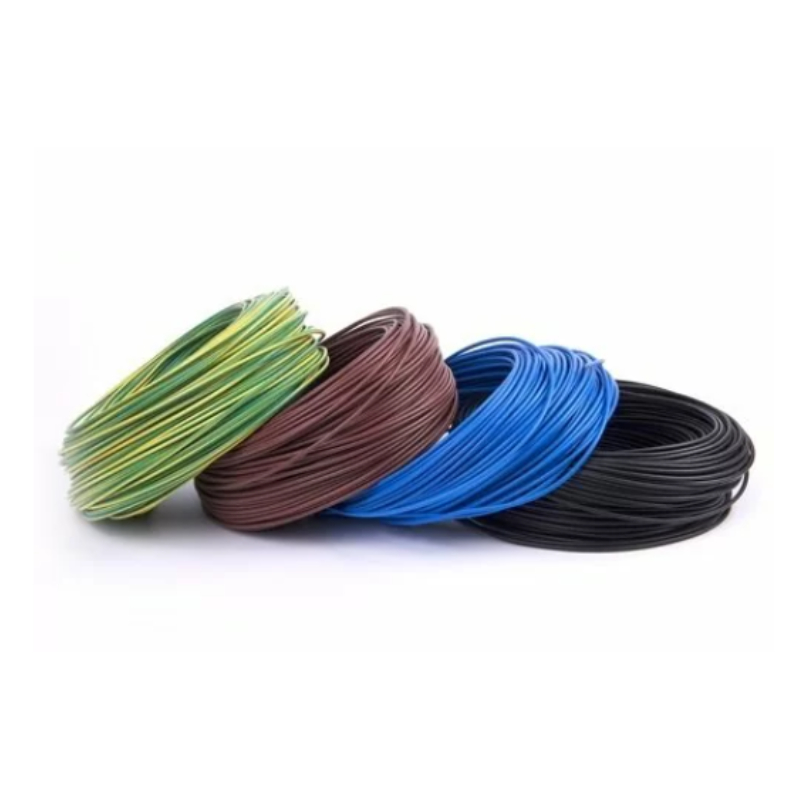

The installation conductor PVA1 (H05V-U) with a cross-section of 1.00 sq.mm is a single-core copper cable intended for fixed installation in electrical installations. It is made with a solid copper conductor (class 1) and PVC insulation, which ensures reliability, good electrical conductivity and a long service life under standard installation conditions.

The cable is suitable for use in lighting circuits, signal installations, electrical panels, machines and apparatus. It is available in different colors of insulation, and when ordering a random color is sent. The announced price is for 1 linear meter of cable from the PVA1 series with a specific cross-section of 1.00 sq.mm.

Purpose

• For fixed installation in lighting, power and signal installations

Main advantages

• Solid copper wire, class 1
• PVC insulation with good mechanical and thermal resistance
• Flame resistant (IEC 332-1)
• Suitable for installation in panels, machines and equipment

Technical characteristics

• Type: PVA1 / H05V-U
• Number of wires: 1
• Section: 1.00 sq. mm
• Wire material: copper
• Insulation: PVC
• Rated voltage: 300/500 V
• Operating temperature: from -30°C to +50°C
• Maximum operating temperature of the cable: +70°C
• Color: assorted (sent randomly)
• Weight: 0.015 kg
• The advertised price is per linear meter.
