Linear siphon for bathroom 650 mm with grille black matt Simple APZ10BLACK-650M

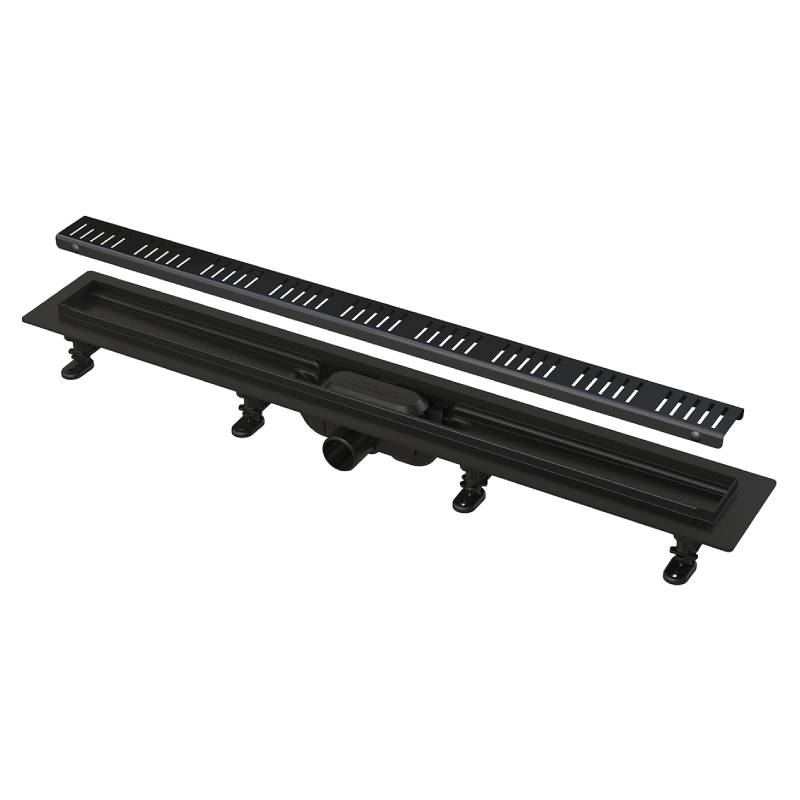

Set of linear floor siphon and perforated grille in black color. The floor siphon is suitable for use with all types of perforated ALCAPLAST gratings. The bathroom siphon is 650 mm long. It is made of high quality material - polypropylene, filled with talc, resistant to mechanical, chemical and thermal damage. The material guarantees resistance to heavy loads up to 300 kg.
The belt siphon is equipped with double protection against unpleasant odors - dry and water seal.

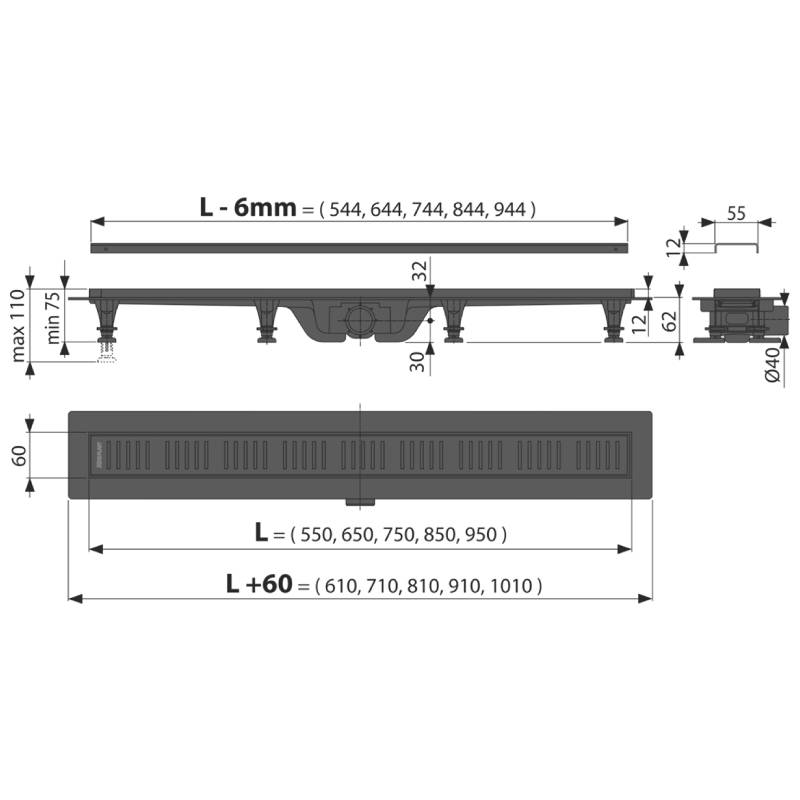

Specifications:

• Odor flap size: 29 mm
• Maximum flow rate: 28 l/min
• Diameter of the siphon to the wastewater: Ф40 mm
• Minimum mounting depth: 62 mm
• Total mounting height: 75 - 110 mm
• Load class K3: 300 kg
