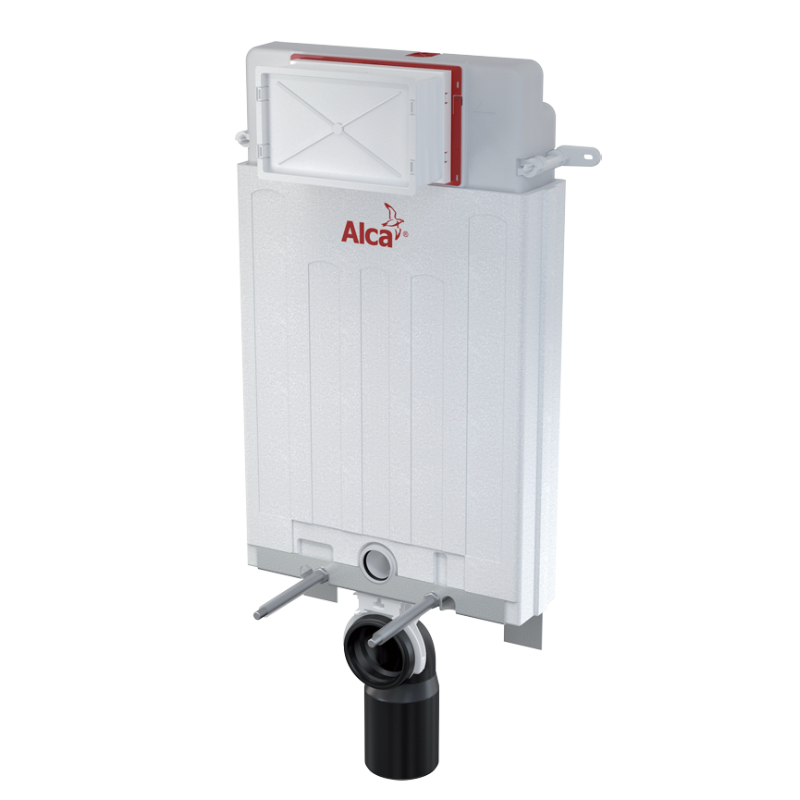

Structure for installation in a solid wall Sadromodul A100 / 1000

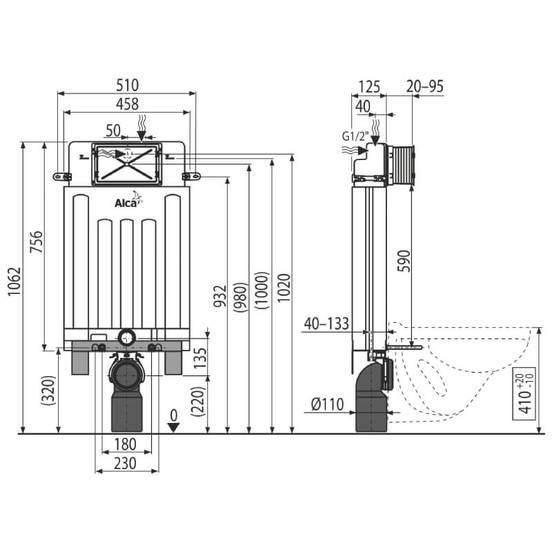

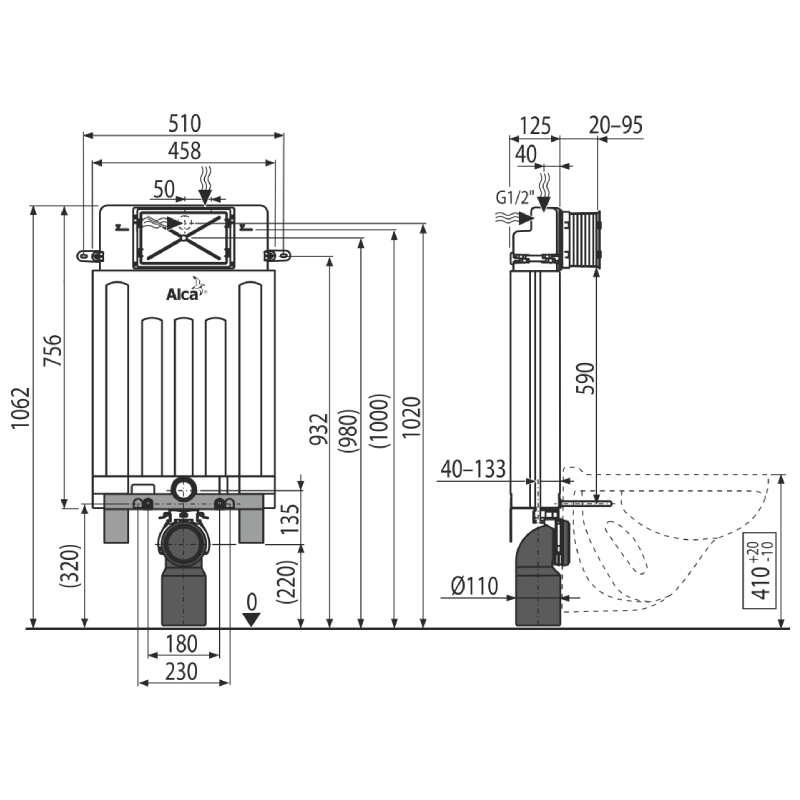

The product is a built-in structure Sadromodul A100/1000 of ALCAPLAST, designed for installation in a solid wall. The model is used for a toilet hanging on a wall, for brick masonry and fencing to the load-bearing wall, for mounting a wall toilet with 180 mm or 230 mm distance between the connection.The support bracket provides high rigidity of the toilet connection to the wall.The dimensions 1050 x 480 x 140 mm and the construction simplify the installation of the system. The model is compatible with all ALCAPLASt console buttons.The tank is made of one piece, which guarantees 100% tightness.The service opening cover simplifies installation and prevents moisture and dirt from entering

Additional features:

• Mounting height: 1062 mm
• Installation depth adjustable from 20-95 mm
• Depth of construction: 125 mm
• Support bracket material: galvanized metal
• Water connection at the rear or top via mounting holes G 1/2"
• Cistern: from 2.5 - 3.5 l/6 - 9 l.
