Straight mine Prakto ф400/ф200 plastic, 200 kg

The purpose of manholes is to provide access to channels or drainage systems. They are designed in places where a change in pipelines is foreseen in a horizontal or vertical direction.

The sewage system is a system of pipes and fittings made of PP Polypropylene, PVC-U. The system is designed for gravity sewerage, for domestic (grey and black water), industrial and rainwater. Pipes and fittings have low weight, high resistance to aggressive waters and a smooth inner layer that creates optimal hydraulic conductivity. Water tightness of connections - 0.5 atm.

Advantages:

• LEGO-type construction: all elements - joints with sockets, pipes are factory equipped with sealing elements
• Pipelife manholes consist entirely of plastic elements, non-corrosive, unbreakable and shape-retaining
• The individual elements are of such dimensions that the different depths of the shafts that are required are achieved in a very easy way
• On their upper side, the system manholes can be equipped with different covers, including plastic, cast iron or telescopic ones, which can withstand different loads from 1.5 to 4 tons
• Very light material
• Easy installation and convenient transportation
• They are resistant to corrosion in alkaline, acidic or aggressive environments
• Lifespan: over 50 years

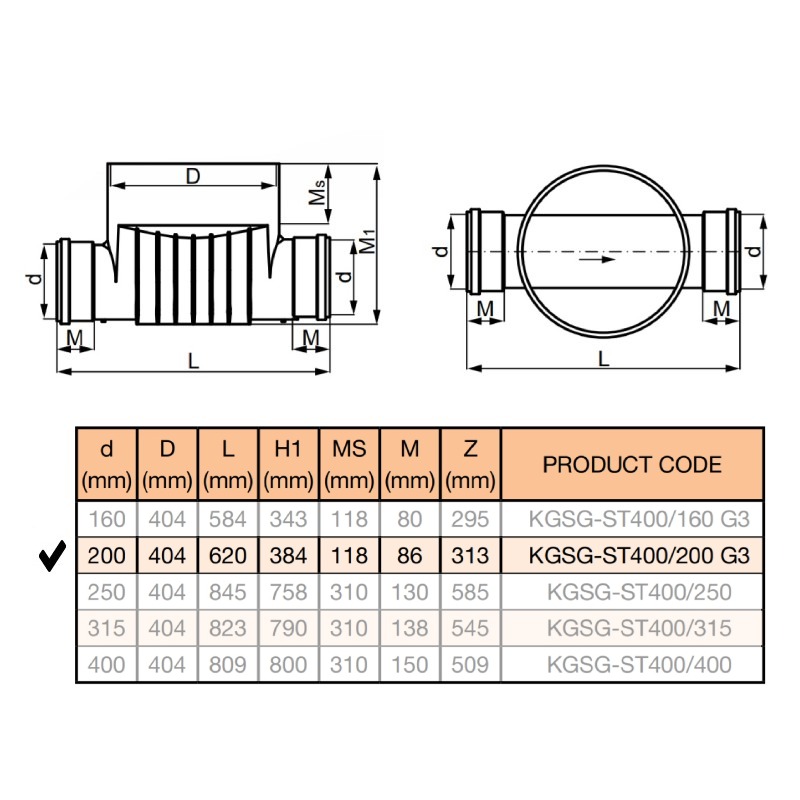

Characteristics of the sump base/bottom:

• Type: ST (Straight Flow)
• 1 input, 1 output
• Inlet/outlet diameter: φ200 mm
• Base diameter: φ400 mm
• Material: PP Polypropylene, PVC-U
• Color: orange
• Complies with standard: EN476, EN13598
