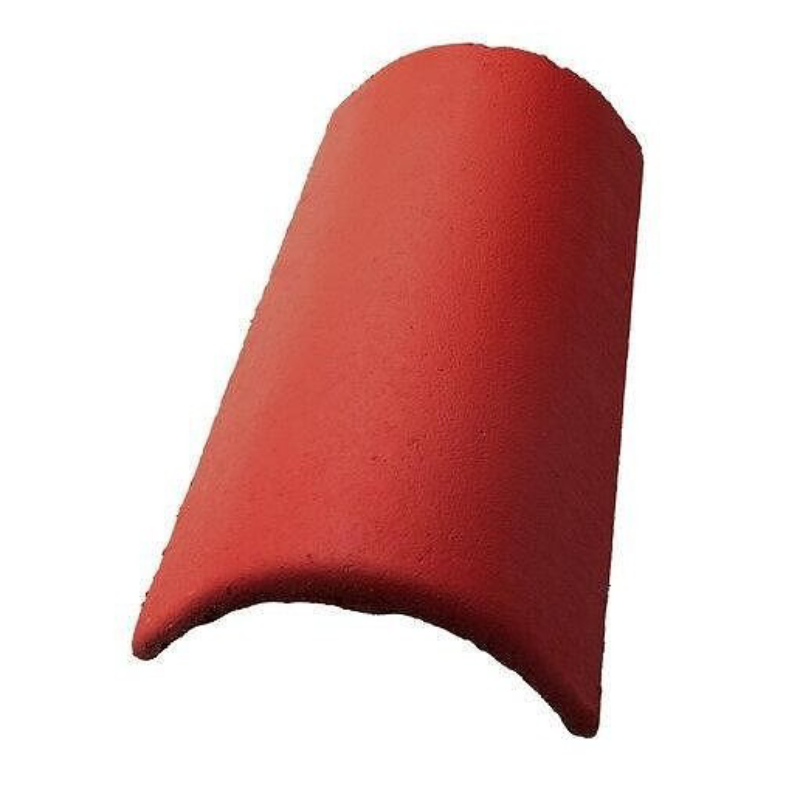

Roof cover Economy red BRAMAC

Bramac Spectra Economy Red is a conical concrete roof cap, specially designed for reliable, economical and aesthetic coverage of the ridge (horizontal edge) of pitched roof structures. The element is an essential component of the overall roofing system, which guarantees perfect compatibility and precise fit to the main tiles. It is made in a classic red color, ensuring visual homogeneity and a finished traditional look of the building.

The material combines the strength of high-quality concrete with excellent waterproofing properties, effectively diverting water to the most critical area of the roof. The structure is adapted both for dry installation on a ridge batten and for classic laying with mortar or cement-based mortar. Proper execution requires that the element be laid by overlapping the previous cover in the direction opposite to the wind, mechanically fastening with a cover clamp or through the factory nail hole.

Purpose

• Construction and sealing of horizontal and inclined ridges on pitched roofs
• Preventing rainwater, snow and wind from penetrating under the roof covering
• Ensuring proper ventilation of the structure during dry installation
• Construction of new and renovation of existing roofs with tiles from the same series

Main advantages

• Highly functional protection of the roof top from severe weather conditions
• Perfect system quality and excellent fit to the elements of the series
• Complete visual harmony and identical red color to that of the roof covering
• Exceptional durability and tested resistance to frost, wind and hail
• Standardized and quick installation by mechanical fixing to the ridge structure

Technical characteristics

• Type: conical roof ridge cap
• Material base: high-quality concrete made of fine sand, cement, water and colorants
• Element dimensions: 450 mm length x 250 / 218 mm width
• Covering length: 400 mm (40 cm effective covering length)
• Consumption rate: 2.5 pieces per 1 linear meter of ridge
• Nail hole: 1 piece factory hole with a diameter of 4 mm (compatible with 1 x 4 mm and 1 x 5 mm)
• Weight per unit: 4.75 kg (nominal weight up to 4.80 kg)
• Surface: smooth with a durable protective color coating
• Color: Red (classic tile shade)
