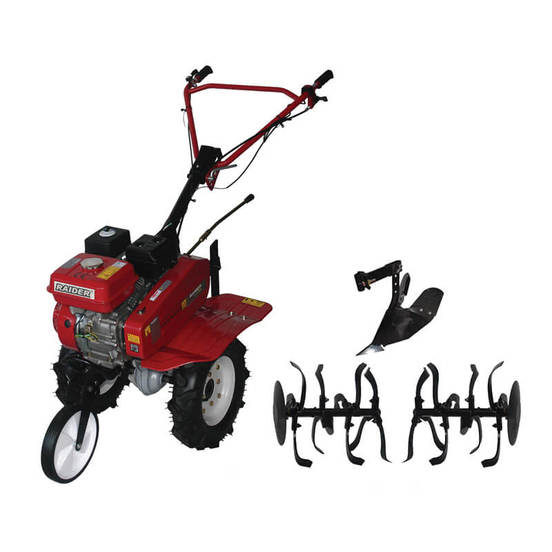

Benzin-Bodenfräse 5,2 kW (7,0 PS) RD-T04

The RD-T04 petrol power tiller is designed for various agricultural activities. It is suitable for the treatment of normal, sandy and clay soils with a slope of less than 10°. The cultivator could also be used for rice fields where the depth of the water layer is not more than 300 mm to the healthy layer. When cultivating areas that are overgrown with weeds or remnants of deep roots, they must be cleaned well before starting work with the power tiller. The cultivator also starts to move faster when there is less pressure in the soil. This leads to faster and shallower processing of the area.
The engine of the petrol power tiller is four-stroke. Its volume is 208 cubic cm. The machine is switched on via a manual starter. The gearbox has three gears - 2 front and 1 rear. The volume of the fuel tank is 3. 6 l.The sound level during operation is 86Db. The width of milling is adjustable 300 - 800 - 1000 mm, and the depth is 150-300 mm.

It is recommended that the oil in the cultivator motor is always at the maximum level.It is desirable to change it every season.In order to use the maximum capacity of the cutter, you must work with quality and uninterrupted fuel for more than 10 days.

The durability of the cutter and its efficient operation also depend on the way the machine is stored. It must be kept in a dry and ventilated place, and thorough cleaning is required after each tillage.

Specifications:

• Power: 5. 2 kW/7.0 hp.
• Gears: 2 front + 1 rear
• Working width: 300-800-1000 mm
• Working depth: 150-300 mm
• Engine: Four strokes
• Engine capacity: 208 cc
• Tank volume: 3.6 liters
• Accessories included
