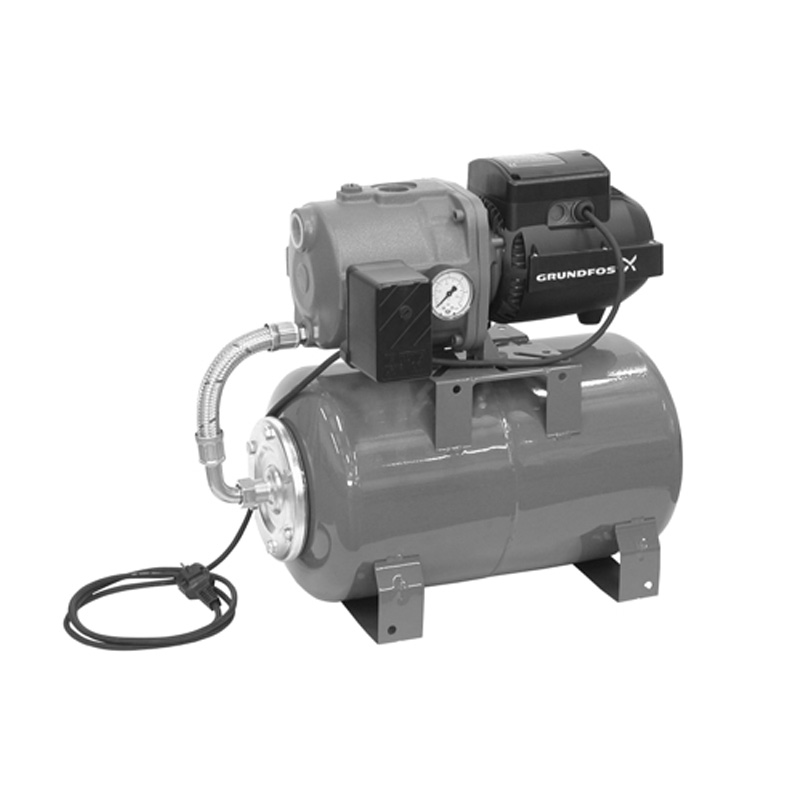

Hydrophor-System JPBasic 3 PT GRUNDFOS

Hydrophore system JPBasic 3 PT GRUNDFOS with engine power 850W and membrane tank for drinking water with a volume of 20 liters. The hydrophore system is a single-stage self-priming (jet) water pump for horizontal installation.
It is used in water supply, drilling, supply of groundwater from shallow wells, as well as in irrigation in horticulture. JPBasic jet pumps are designed for pumping non-aggressive liquids without solid particles. In case of improper use and ingress of solid particles and fibers, the pump must be flushed with clean water.
Specifications:
- Working flow: 0.4 to 3. 2 cubic meters per hour
- Working pressure: 17 to 38 m
- Maximum head: 4.3 m
- Liquid temperature: 0°C to 40°C
- Suction depth: max. 8 m
